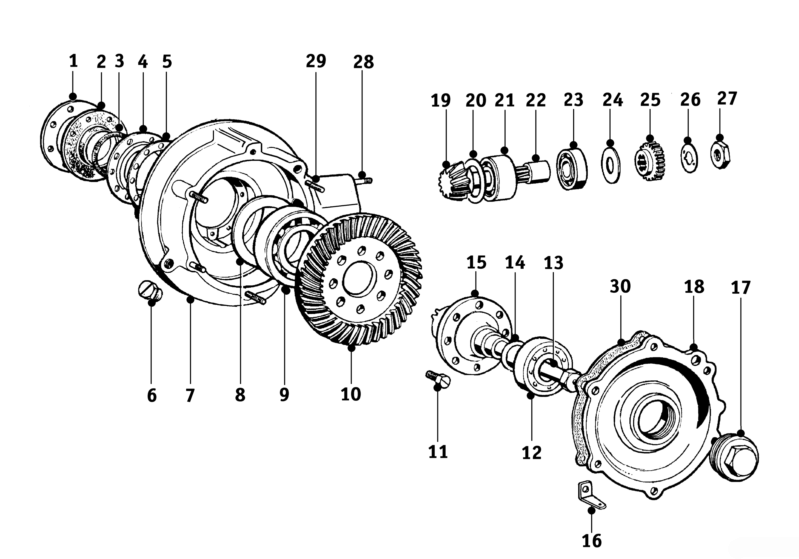

Final drive R24

Pos		SKU	BMW no.	Add. info	Rec. qty	Price
2	Rubber seal for driving dog R24, pre-war				1	Not available
5	Gasket for final drive R24	3004127	33123004127		1	€4,36
6	Oil plug M14x1.25, SW17 (available for pre-order)	01652RD	33113004230.1	M14x1.25, SW17	1	€9,20
9	Ball bearing FAG 6208 for rear drive R24	9981252	07119981252	6208	1	€10,59
10	Crown & pinion gear set 34:8			34:8	1	Not available
11	Bolt M8 x 1 x 12	3004151MZ	33113004151	M8x1x12	8	€4,72
12	Ball bearing FAG 6305 for ring gear	9981432	07119981432	6305	1	€6,35
13	Rear axle - polished SSt (available for pre-order) ►see details!!	3004159	36313004159		1	€49,85
15	Driving flange in final drive (available for pre-order)	3004131	33123004131		1	€63,04
17	Screw plug final drive				1	Not available
20	Shim, output shaft / wheel hub / pinion	1231651	23211231651	0.20 - 1.00 mm	1	€7,32
21	Double angular contact bearing FAG 3303-BD-XL-TVH - PA cage	9982460	07119982460	3303	1	€51,67
23	Ball bearing FAG 6203, crankshaft & camshaft ►see details	9981213	07119981213	6203	1	€3,93
25	Hub R35, R20, R23, R24 (discontinued)	3038145MZ	33123038145		1	€0,00
26	Securing plate	3038153	33123038153		1	€8,35
27	Hex nut				1	Not available
28	Stud bolt M8 x 25 - zinc plated ►see details	9903326	07119903326	M8x25	2	€4,96
	Hex nut M8 x 1.25	9922081	07119922081	M8x1.25	2	€0,15
	Hex nut M8 x 1.25	9922081	07119922081	M8x1.25	2	€0,15
30	Gasket for final drive R24	3004163	33113004163		1	€7,60
