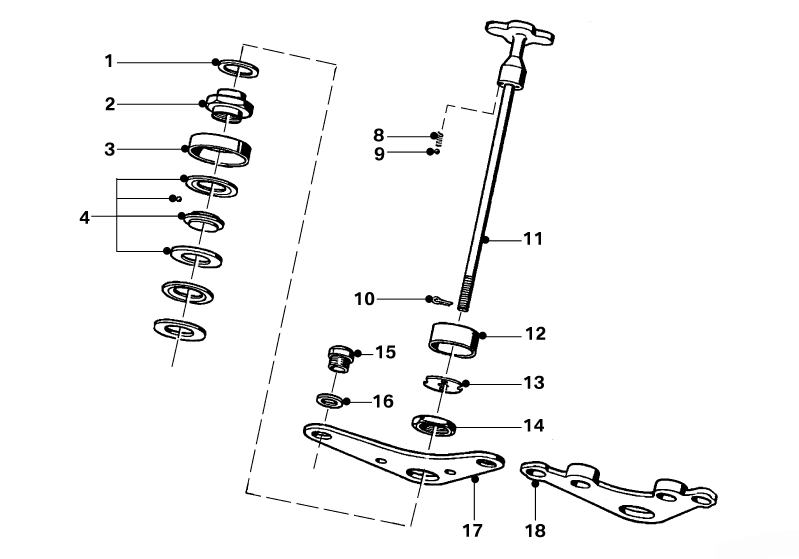

Fork bridge R26 – R27

Pos		SKU	BMW no.	Add. info	Rec. qty	Price
1	Shim for steering head	1231201	31411231201		1	€4,30
2	Lower hex nut, steering head i.c.w. tapered roller bearing set 31422000000	2000182.K	31422000182.K	replaced by 31412000181.K	1	€26,98
3	Protection cap upper steering head	2000184	31412000184		1	€11,86
4	Ball Ø 5.5 mm for steering head	9986255	07119986255	Ø 5.5 mm	2x23	€0,25
	Ball cage for steering head (discontinued)	2000193	31412000193		1	€5,17
	Race with outer shoulder for steering head bearings				2	Not available
x	Tapered roller bearing set for steering head (2 pcs)	2000000	31422000000	Alternative to nr. 4	2	€70,16
	Adjustment lock nut steering head, i.c.w. tapered roller bearing set nr. 31422000000	2000181.K	31412000181.K	i.c.w. 31422000000	1	€13,61
8	Spring for steering damper adjusting screw	2000118	32712000118		2	€1,63
9	Ball Ø 5.5 mm for steering head	9986255	07119986255		2x23	€0,25
10	Split pin 2 x 20 mm - SSt	9945111.1	07119945111.1		1	€0,17
11	Adjusting screw steering damper, chromed alum.	2000048	31412000048		1	€106,72
12	Steering head lock cap - chrome	2000114	31422000114		1	€21,42
13	Damper safety washer	2000245	31422000245		1	€17,25
14	Fork bridge upper lock nut	2000101	31412000101		1	€11,92
15	Fork screw M10 x 1 x 16, chrome plated	2000343	31412000343		2	€12,83
16	Washer, polished SSt	2000345.4	31412000345.4		2	€7,50
16b	Washer - SSt	2000345.1	31412000345.1		1	€6,96
17	Fork bridge, upper, black base coat - SSt	2000129	31412000129	R27	1	€31,28
