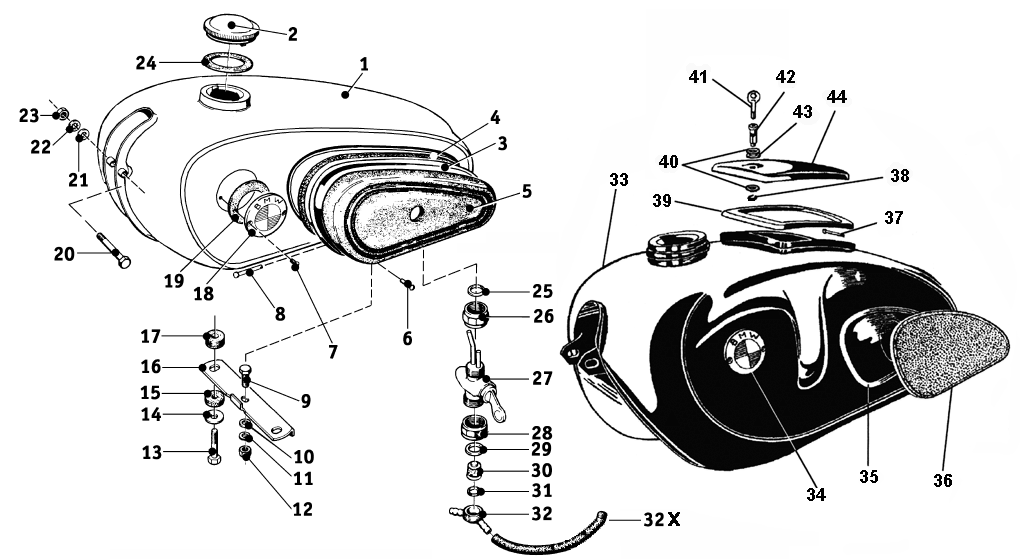

1 |
 |
Tank coating (red-brown matt) 0.5 ltr (E10 proof) | 4080042.Y |
16114080042.Y |
|
1 |
€30,19
|
|
|
|
2 |
 |
Filler cap, aluminum, original BMW (gaskets included) | 0035314 |
51250035314 |
aluminum |
1 |
€133,46
|
|
|
|
|
 |
Filler cap chrome (gasket ring included) | 4080126.C |
16114080126.C |
chrome |
1 |
€24,81
|
|
|
|
|
 |
Filler cap with lock - SSt | 4080127 |
16114080127 |
stainless steel |
1 |
€24,02
|
|
|
|
3 |
 |
Toolbox lid (side of the tank) | 4080270 |
16114080270 |
|
1 |
€76,27
|
|
|
|
3a |
 |
Toolbox lock | 9016008 |
32329016008 |
|
1 |
€39,99
|
|
|
|
4 |
 |
Rubber gasket for tool compartment lid ►see details | 4080288 |
16114080288 |
|
1 |
€3,27
|
|
|
|
5 |
 |
Knee pad rubber on fuel tank, right side, R50 - R69S ►see details | 4080187 |
16114080187 |
|
1 |
€23,41
|
|
|
|
|
 |
Knee pad rubber on fuel tank, left side, R50 - R69S ►see details | 4080189 |
16114080189 |
|
1 |
€23,41
|
|
|
|
|
 |
Repair panel for knee pad RH side R26, R27, R50 - R69S | 4080187.7 |
16114080187.7 |
|
1 |
€11,92
|
|
|
|
|
 |
Repair panel for knee pad LH side R26, R27, R50 - R69S | 4080189.7 |
16114080189.7 |
|
1 |
€11,92
|
|
|
|
6 |
 |
Countersunk rivet 4 x 18 | 9947463 |
07119947463 |
4x18 |
3 |
€0,27
|
|
|
|
7 |
|
Lenshead countersunk screw M4 x 8 - zinc plated (while supplies last) |
|
|
M4x10 |
4 |
Not available |
|
|
|
7b |
 |
Lenshead countersunk screw M3 x 10 - SSt | 9901310.3 |
07119901310.3 |
M4x10 |
1 |
€0,50
|
|
|
|
7c |
 |
Lenshead countersunk screw M4 x - SSt | 9901310.1 |
07119901310.1 |
M4x10 |
1 |
€0,50
|
|
|
|
8 |
|
Hinge pin for tool compartment lid - zinc plated (while stock lasts) |
|
|
|
2 |
Not available |
|
|
|
9 |
|
Hex bolt M8 x 18 |
|
|
M8x18 |
1 |
Not available |
|
|
|
10 |
 |
Flat washer Ø 8.4 mm - SSt (smaller OD - 14.75 mm) | 9931655.1 |
07119931655.1 |
8.4 |
1 |
€0,15
|
|
|
|
11 |
 |
Wave washer B8 | 9932090 |
07119932090 |
B8 |
1 |
€0,12
|
|
|
|
12 |
 |
Hex nut M8 x 1.25 | 9922081 |
07119922081 |
M8x1.25 |
1 |
€0,15
|
|
|
|
13 |
 |
Hex bolt M8 x 1 x 30 for tank mounting ►see details | 9914053 |
07119914053 |
M8x1x30 |
2 |
€1,67
|
|
|
|
14 |
|
Washer Ø 8.4 x 30 x 1 mm - Zinc plated |
|
|
|
2 |
Not available |
|
|
|
15 |
 |
Rubber washer 6 mm | 4080148 |
16114080148 |
|
2 |
€2,15
|
|
|
|
16 |
 |
Mounting bracket for rear side fuel tank | 4080194 |
16114080194 |
|
1 |
€22,69
|
|
|
|
17 |
 |
Rubber washer 10 mm for fuel tank | 4080248 |
16114080248 |
|
2 |
€3,75
|
|
|
|
18 |
 |
Tank badge, enamel/nickel, domed - R25/3, R26, R27, R50 - R69S original BMW ►see details | 0035322 |
51140035322 |
|
2 |
€76,45
|
|
|
|
19 |
 |
Rubber for tank badge | 6040110 |
51146040110 |
|
2 |
€1,39
|
|
|
|
20 |
 |
Hex bolt M8 x 1 x 100 | 9914093 |
07119914093 |
M8x1x100 |
1 |
€3,03
|
|
|
|
|
 |
Flat washer Ø 8.4 mm - SSt | 9931067.1 |
07119931067.1 |
Ø 8.4 mm - SSt |
1 |
€0,18
|
|
|
|
21 |
|
Flat washer Ø 8.4 mm |
|
|
Ø 8.4 mm |
1 |
Not available |
|
|
|
22 |
 |
Serrated washer J8.4 - SSt | 9936206.1 |
07119936206.1 |
J8.4 |
1 |
€0,21
|
|
|
|
23 |
 |
Hex nut M8 x 1 SW13 | 9922093SP |
07119922093 |
M8x1 |
1 |
€0,34
|
|
|
|
24 |
 |
Gasket for fuel cap, cork | 4080130 |
16114080130 |
|
1 |
€2,72
|
|
|
|
25 |
 |
Gasket ring 18 x 14.5 x 1.5 for top nut on Everbest fuel cock | 4084110 |
16124084110 |
|
1 |
€0,69
|
|
|
|
26 |
 |
Coupling nut (top) M20 x 1 for "Everbest" Zeppelin fuel cock | 4084120.1 |
16124084120.1 |
M20x1 |
1 |
€13,79
|
|
|
|
26 |
|
Coupling nut (top) M20 x 1 for "Everbest" Zeppelin fuel cock | 4084120.1 |
16124084120.1 |
M20x1 |
1 |
€13,79
|
|
|
|
|
 |
Coupling nut (top) for Karcoma fuel tap M20 x 1 - LH and RH screw thread | 1233363 |
16121233363 |
|
1 |
€6,03
|
|
|
|
27 |
 |
Fuel cock Frankfurter "old look" M20x1 | 4084030.6 |
16124084030.6 |
Everbest (reconditioned) |
1 |
€49,79
|
|
|
|
27a |
|
Fuel cock Frankfurter "old look" M20x1 | 4084030.6 |
16124084030.6 |
Everbest (reconditioned) |
1 |
€49,79
|
|
|
|
27b |
 |
Reduction nut for fuel cock, from M20 x 1 to M16 x 1 | 4084030.7 |
16124084030.7 |
Everbest (reconditioned) |
1 |
€3,57
|
|
|
|
27c |
 |
Used part: fuel hose Y-piece for Everbest | 4084030Y |
16124084030Y |
Everbest (reconditioned) |
1 |
€12,00
|
|
|
|
|
|
Fuel cock Frankfurter "old look" M20x1 | 4084030.6 |
16124084030.6 |
Frankfurter model |
1 |
€49,79
|
|
|
|
|
 |
Fuel cock Karcoma M20 x 1 ►see details | 1233520 |
16121233520 |
Karcoma |
1 |
€66,25
|
|
|
|
|
 |
Rubber seal 5 hole, fuel cock Karcoma T = 3 mm D = 21.5 mm | 1238924 |
16121238924 |
5 holes |
1 |
€7,56
|
|
|
|
28 |
 |
Coupling nut (lower) for "Everbest" fuel cock - SSt | 4084169.1 |
16124084169.1 |
M22x1 |
1 |
€13,79
|
|
|
|
28 |
|
Coupling nut (lower) for "Everbest" fuel cock - SSt | 4084169.1 |
16124084169.1 |
M22x1 |
1 |
€13,79
|
|
|
|
29 |
 |
Gasket ring 17 x 21 x 1.5 for bottom nut on Everbest fuel cock | 4084109 |
16124084109 |
|
1 |
€0,97
|
|
|
|
30 |
 |
Filter for Everbest Zeppelin fuel cock (discontinued) | 4084115RD |
16124084115 |
|
1 |
€0,00
|
|
|
|
31 |
 |
Cork gasket ring for filter in Everbest Zeppelin fuel cock | 4084111 |
16124084111 |
|
1 |
€4,36
|
|
|
|
32 |
 |
Hose connection double outlet for fuel tap "Everbest" | 4084178 |
16124084178 |
Everbest |
1 |
€20,99
|
|
|
|
|
 |
Hose connection double outlet for fuel tap Karcoma | 1233365 |
16121233365 |
Karcoma |
1 |
€10,47
|
|
|
|
x |
 |
Braided fuel hose B7 x 12, black - price / m1 (E10 proof) | 9988819 |
07119988819 |
B7x11 |
2 |
€5,81
|
|
|
|
x |
|
Braided fuel hose B7 x 12, black - price / m1 (E10 proof) | 9988819 |
07119988819 |
|
2 |
€5,81
|
|
|
|
x |
|
Braided fuel hose B7 x 12, black - price / m1 (E10 proof) | 9988819 |
07119988819 |
|
6 |
€5,81
|
|
|
|
33 |
 |
Fuel tank "Schorsch Meier" base coated | 0035292 |
16110035292 |
primered |
1 |
€1.889,11
|
|
|
|
|
 |
Fuel tank "Schorsch Meier" painted & coach-lined, w/o accesories | 1232725RD |
16111232725 |
painted & coach-lined |
1 |
€2.278,97
|
|
|
|
34 |
 |
Tank badge, enamel/nickel, R51/2 - R68 + LH side S. Meier tank, original BMW ►see details | 0035269 |
51140035269 |
|
2 |
€66,73
|
|
|
|
35 |
 |
Repair metal profile for right side knee pad on Schorsch Meier fuel tank | 4080193.7 |
16114080193.7 |
right side |
1 |
€17,24
|
|
|
|
|
 |
Repair metal profile for left side knee pad on Schorsch Meier fuel tank | 4080192.7 |
16114080192.7 |
left side |
1 |
€17,24
|
|
|
|
36 |
 |
Knee pad (right side) for Schorsch Meier fuel tank | 4080193 |
16114080193 |
|
1 |
€36,78
|
|
|
|
|
 |
Knee pad (left side) for Schorsch Meier fuel tank | 4080192 |
16114080192 |
|
1 |
€36,78
|
|
|
|
|
|
Repair metal profile for right side knee pad on Schorsch Meier fuel tank | 4080193.7 |
16114080193.7 |
|
1 |
€17,24
|
|
|
|
|
|
Repair metal profile for left side knee pad on Schorsch Meier fuel tank | 4080192.7 |
16114080192.7 |
|
1 |
€17,24
|
|
|
|
37 |
 |
Hinge pin for toolbox lid 4 x 35 mm - SSt | 4080176.1 |
16114080176.1 |
|
2 |
€5,45
|
|
|
|
38 |
|
Circlip for lock screw toolbox lid |
|
|
|
1 |
Not available |
|
|
|
38b |
 |
Retaining ring for generator cover bolt & toolbox lock screw - SSt | 4080160.2 |
16114080160.2 |
|
1 |
€1,69
|
|
|
|
39 |
 |
Gasket for toolbox lid ►see details | 4080188 |
16114080188 |
|
1 |
€10,83
|
|
|
|
40 |
 |
Washer for lock screw toolbox lid - SSt | 9963107 |
07119963107 |
|
2 |
€2,15
|
|
|
|
41 |
|
Key for toolbox lock screw - zinc plated |
|
|
|
1 |
Not available |
|
|
|
42 |
|
Lock screw for toolbox lid (>1952) - zinc plated |
|
|
|
1 |
Not available |
|
|
|
42b |
 |
Lock screw for toolbox lid (>1952) - SSt polished | 4080165.4 |
16114080165.4 |
|
1 |
€11,98
|
|
|
|
42c |
 |
Washer set for lock screw for toolbox lid (>1952) | 4080165.7 |
16114080165.7 |
|
1 |
€3,27
|
|
|
|
43 |
 |
Rubber washer 10 x 16 for toolbox lid | 9963108 |
07119963108 |
|
1 |
€0,82
|
|
|
|
44 |
 |
Toolbox lid, hinge at rear side, black | 4080170 |
16114080170 |
black |
1 |
€86,43
|
|
|
|
|
 |
Toolbox lid, hinge at bottom side, base coated | 1231298 |
16111231298 |
primered |
1 |
€60,32
|
|
|
