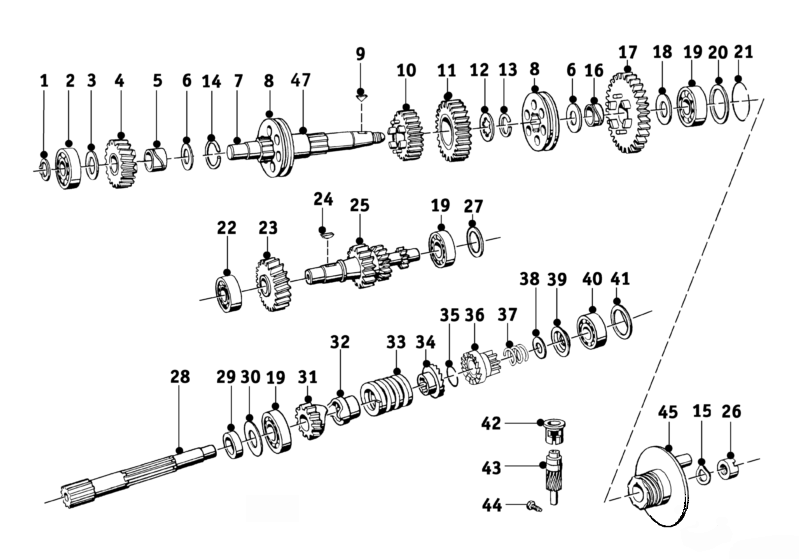

Gearbox shafts R24 – R25/3

Pos Description SKU BMW no. Add. info Rec. qty Price Qty
1 Circlip A17 x 1 Circlip A17 x 19934090 07119934090 R25 - R25-3, A17x1 1 €0,97
2 Bearing FAG 6303 C3 output shaft - front Bearing FAG 6303 C3 output shaft - front9981416 07119981416 6303 C3 1 €4,78
3 Stop washer 4th gear - hardened ►see details Stop washer 4th gear - hardened ►see details1020102 23211020102 R25 - R25/3 1 €5,93
4 Spur gear 4th speed 20T Spur gear 4th speed 20T1030153 23221030153 R25, R25/3 1 €184,46
5 Bushing 4th gear Bushing 4th gear1030266 23221030266 1 €23,53
6 Stop washer, hardened, with chamfer Stop washer, hardened, with chamfer1040104 23221040104 2 €5,99
7 Output shaft R25 - R27 Output shaft R25 - R271030000 23211030000 1 €229,11
8 Sliding claw gearbox - original BMW 2 Not available
8b Sliding claw gearbox - NOS Sliding claw gearbox - NOS1030140.N 23311030140.N 1 €53,85
9 Woodruff key 4 x 6.5 mm Woodruff key 4 x 6.5 mm9951461 07119951461 4x6.5 1 €1,52
10 Spur gear 3rd speed 24T - NOS Spur gear 3rd speed 24T - NOS1030150 23221030150 R25 - R25/3 1 €172,85
11 Spur gear 2nd speed, 28T - NOS Spur gear 2nd speed, 28T - NOS1030146 23221030146 R25 - R25/3 1 €217,92
12 Stop washer for spur gear 2nd speed Stop washer for spur gear 2nd speed1030104 23211030104 1 €13,79
13 Lock ring A25 x 1.2 mm Lock ring A25 x 1.2 mm9934171 07119934171 R25 - R25/3, 25x1.2 1 €0,58
14 Snap ring on output shaft Snap ring on output shaft1030100 23211030100 R25 - R25/3 1 €1,63
15 Wave washer Ø 14 mm for coupling flange Wave washer Ø 14 mm for coupling flange1030168 23211030168 Ø 14 mm 1 €3,39
16 Bushing 1st gear Bushing 1st gear1030259 23221030259 1 €24,78
17 No product image available Spur gear 1st speed (available for pre-order)1030132 23221030132 1 €134,73
18 Stop washer spur gear 1st speed Stop washer spur gear 1st speed1030112 23211030112 1 €7,38
19 Bearing SKF 6204 C3 ►see details Bearing SKF 6204 C3 ►see details9981219 07119981219 6204 C3 3 €10,16
No product image available Double row bearing 4203, rear side countershaft R24 (available for pre-order)9981910 07119981910 R24, 4203 1 €45,80
22 Angular contact ball bearing SKF 3203 ATN9 - C3 Angular contact ball bearing SKF 3203 ATN9 - C39982409S 07119982409 R25 - R25/3, 3203 1 €32,37
23 Spur gear - counter shaft gear box 21T Spur gear - counter shaft gear box 21T1040108 23221040108 R25 - R25/3 1 €235,77
24 Woodruff key 5 x 6.5 mm Woodruff key 5 x 6.5 mm9951480 07119951480 5x6.5 1 €1,63
26 Bearing FAG 6203 C3 Bearing FAG 6203 C39981214 07119981214 6203 C3 1 €4,54
28 Used part: input shaft gear box (no std. stock item) Used part: input shaft gear box (no std. stock item)1020008.U 23211020008.U R25 - R25/3 1 €127,35
29 Bushing for input shaft gearbox Bushing for input shaft gearbox1020140 21521020140 1 €17,79
30 Washer for swingarm bearing and gear shaft Washer for swingarm bearing and gear shaft1020136 21521020136 R25/2, R25/3 1 €5,93
31 Drive gear (driveshaft) 13T Drive gear (driveshaft) 13T1020120 23221020120 R25 - R25/3 1 €70,06
32 Thrust piece on countershaft Thrust piece on countershaft1020144 23211020144 R25 - R25/3 1 €27,65
33 Thrust spring - NOS Thrust spring - NOS1020152 23211020152 R25 - R25/3 1 €18,51
34 Catch for kickstarter Catch for kickstarter1020160 23511020160 R25 - R25/3 1 €38,90
35 Snap ring input gear shaft Snap ring input gear shaft1020148 23211020148 R25 - R25/3 1 €1,15
36 Kickstarter gear Kickstarter gear1056104 23221056104 R25 - R25/3 1 €103,09
37 Kickstarter spring, 1.1 mm thickness Kickstarter spring, 1.1 mm thickness1056116 23511056116 R25 - R25/3 1 €2,72
38 Stop washer Stop washer1020164 23211020164 1 €10,35
Washer for gearbox drive shaft Washer for gearbox drive shaft1020211 23211020211 0.44 - 1.00 mm 1 €10,77
40 Bearing STEYR 6302 C3 input shaft rear 6302 C3 1 Not available
41 Shim for input shaft Shim for input shaft1020128.020 21521020128.020 0.20 - 1.00 mm 1 €3,69
41h Shim for input shaft, set of 7 pcs, 0.18 - 0.90 mm Shim for input shaft, set of 7 pcs, 0.18 - 0.90 mm1020128 21521020128.set 0.20 - 1.00 mm 1 €25,83
42 Bushing for speedometer cable - SSt Bushing for speedometer cable - SSt1030128.1 23221030128.1 1 €16,76
43 Speedometer driveshaft (temporarily unavailable) Speedometer driveshaft (temporarily unavailable)1030165 23221030165 1 €104,42
44 Hex bolt M6 SW9 for speedometer cable - SSt Hex bolt M6 SW9 for speedometer cable - SSt1030124.1 23111030124.1 1 €7,50
45 Coupling flange, chrome, gearbox - driveshaft Coupling flange, chrome, gearbox - driveshaft1030156 23211030156 R25 - R25/3 1 €183,19
46 Nut for transmission output shaft M14 x 1.5 Nut for transmission output shaft M14 x 1.51030120 23211030120 M14x1.5 1 €17,79
47 Bushing 2nd and 3rd gear Bushing 2nd and 3rd gear1030262 23221030262 1 €62,50
