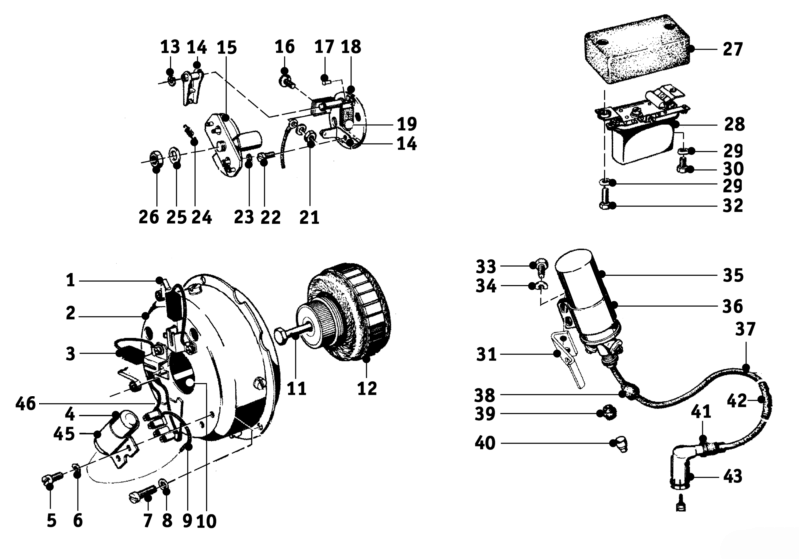

1 |
 |
Thrust spring for carbon brushes 6V 60W | 8002124 |
12318002124 |
|
2 |
€3,93
|
|
|
|
2 |
|
Pole housing, complete with coils (NOS) |
|
|
|
1 |
Not available |
|
|
|
2b |
 |
Used part: R27 generator (price & availability on request) | 8002143.UK |
12318002143.UK |
|
1 |
€0,00
|
|
|
|
3 |
 |
Set of carbon brushes NOX 16 for 6V 60W generator ~7 x 8 mm - Noris | 8002106 |
12318002106 |
set of 2 |
2 |
€13,13
|
|
|
|
4 |
 |
Capacitor with screw connector - 0.22μF (made in Germany) | 8030106 |
12318030106 |
|
1 |
€16,15
|
|
|
|
|
 |
Capacitor and clamp set (Noris) | 8030105 |
12318030105 |
NORIS |
1 |
€30,37
|
|
|
|
5 |
 |
Cylinder head screw M4 x 6 - SSt | 9919360.1 |
07119919360.1 |
M4x6 |
2 |
€0,24
|
|
|
|
6 |
 |
Spring washer B4 - Zinc plated | 9933035 |
07119933035 |
B4 |
2 |
€0,16
|
|
|
|
|
|
Wave washer B6 - zinc plated |
|
|
B6 |
3 |
Not available |
|
|
|
8 |
|
Wave washer B5 |
|
|
B5 |
3 |
Not available |
|
|
|
9 |
 |
cable connection to the capacitor | 8030108 |
12318030108 |
R26 |
1 |
€8,29
|
|
|
|
10 |
 |
Field coil 1 - with resistor - round core ►see details | 8002139 |
12318002139 |
R26 |
1 |
€115,98
|
|
|
|
|
 |
Field coil 1 / 2 - round core ►see details | 8002144 |
12318002144 |
R26, R27 |
1 / 2 |
€61,71
|
|
|
|
|
 |
Field coil 3 - round core ►see details | 8002145 |
12318002145 |
R26, R27 |
1 |
€61,71
|
|
|
|
|
 |
Field coil 4 - round core ►see details | 8002146 |
12318002146 |
R26, R27 |
1 |
€61,71
|
|
|
|
11 |
 |
Hex. head screw for armature M8 x 45 | 8002142 |
12318002142 |
|
1 |
€4,50
|
|
|
|
12 |
 |
Armature R27, original (price & availability on request) | 8002141 |
12318002141 |
|
1 |
€396,61
|
|
|
|
13 |
 |
C Clip for contact points | 8030576 |
12118030576 |
|
1 |
€0,00
|
|
|
|
14 |
 |
Contact points R27 | 8030155 |
12118030155 |
|
1 |
€16,27
|
|
|
|
15 |
 |
Ignition advance unit, after-market (available for pre-order) | 8030147 |
12118030147 |
|
1 |
€327,64
|
|
|
|
18 |
 |
Used part: base plate contact points (price & availability on request) | 8030132 |
12118030132 |
|
1 |
€0,00
|
|
|
|
21 |
 |
Hex nut M4, flat, for contact point R27 | 9921025RD |
07119921025 |
|
1 |
€0,11
|
|
|
|
22 |
 |
Screw for contact point M4 x 6 - SSt | 8030134 |
12118030134 |
M4x6 |
1 |
€0,35
|
|
|
|
x |
 |
Serrated washer J4.3 | 9936041 |
07119936041 |
J4.3 |
1 |
€0,10
|
|
|
|
23 |
|
C Clip for contact points | 8030576 |
12118030576 |
|
2 |
€0,00
|
|
|
|
23 |
 |
C Clip for contact points 3.2 | 01866 |
07119932815 |
3.2 |
2 |
€1,03
|
|
|
|
24 |
 |
Advance spring short - R27 | 8030148 |
12118030148 |
short |
2 |
€4,48
|
|
|
|
25 |
 |
Flat washer Ø 6.4 - zinc plated | 9931043 |
07119931043 |
6.4 flat |
1 |
€0,07
|
|
|
|
26 |
 |
Hex nut M6 x 1 flat - SSt | 9921056.1 |
07119921056.1 |
M6 flat |
1 |
€0,25
|
|
|
|
27 |
 |
Protective cap for voltage regulator (100W generator) | 8008115 |
12318008115 |
|
1 |
€19,42
|
|
|
|
28 |
 |
Regulator switch, electronic | 8008106.E |
12328008106.E |
|
1 |
€143,57
|
|
|
|
28 |
 |
Regulator switch, mechanical - BOSCH | 8008106 |
12328008106 |
|
1 |
€169,28
|
|
|
|
29 |
 |
Wave washer B5 - SSt | 9932047SP |
07119932047.1 |
B5 |
2 |
€0,11
|
|
|
|
30 |
 |
Hex head screw M5 x 8 - SSt | 9913210.1 |
07119913210.1 |
M5x8 |
1 |
€0,27
|
|
|
|
31 |
 |
Bracket for ignition coil and horn | 8046124 |
61338046124 |
|
1 |
€11,19
|
|
|
|
32 |
 |
Hex bolt M5 x 12 - polished SSt | 9913227.4 |
07119913227.4 |
M5x12 |
1 |
€2,84
|
|
|
|
32b |
 |
Hex bolt M5 x 12 - SSt | 9913227.6 |
07119913227.6 |
M5x12 |
1 |
€0,27
|
|
|
|
33 |
|
Hex head screw M6 x 10 - SSt |
|
|
M6x10 |
2 |
Not available |
|
|
|
34 |
 |
Wave washer B6 - black oxide | 9932099 |
07119932099 |
B6 |
2 |
€0,30
|
|
|
|
35 |
 |
Ignition coil 6V, after-market, made in Germany 15 = + (use /5 spark plug cable) | 8030025 |
12138030025 |
|
1 |
€55,93
|
|
|
|
36 |
 |
Attaching clip for ignition coil - R51/2, R27 | 8030500 |
12138030500 |
|
1 |
€12,40
|
|
|
|
37 |
 |
Spark plug wire BERU, silicone - copper core cable - 1 meter | 8036124 |
12128036124 |
|
1 |
€8,35
|
|
|
|
X |
 |
Cable sleeve (soldering) | 8536120 |
12128536120 |
R27 |
1 |
€1,88
|
|
|
|
38 |
 |
Rubber grommet sparkplug wire | 8070106 |
61138070106 |
R26 |
1 |
€2,78
|
|
|
|
39 |
|
Rubber seal for ignition coil R27 |
|
|
|
1 |
Not available |
|
|
|
40 |
|
Sleeve for ignition coil R27 |
|
|
|
1 |
Not available |
|
|
|
41 |
 |
Rubber cover for spark plug cap and cable (BERU) | 8036160 |
12128036160 |
|
1 |
€1,56
|
|
|
|
42 |
 |
Rubber sleeve for ignition cable | 8036100 |
12128036100 |
|
1 |
€2,87
|
|
|
|
43 |
 |
Spark plug cap BERU - 1 KΩ resistor ►see details | 8036157 |
12128036157 |
|
1 |
€10,95
|
|
|
|
x |
|
Spark plug Bosch W 240 T1 (W4AC) short reach (discontinued) |
|
|
W 240 T1 (W4AC) |
1 |
Not available |
|
|
|
45 |
 |
Capacitor clamp (Noris) | 8030107 |
12318030107 |
|
1 |
€6,17
|
|
|
|
46 |
 |
Terminal board on generator R27 (Pertinax) | 8002289P |
12318002289P |
R27 |
1 |
€40,23
|
|
|
|
x |
 |
Rubber grommet main harness at generator | 8070195 |
61138070195 |
R27 |
1 |
€4,42
|
|
|
|
x |
 |
Protection cap, ignition coil to spark plug cable | 8536129 |
12118536129 |
R27 |
1 |
€10,83
|
|
|
