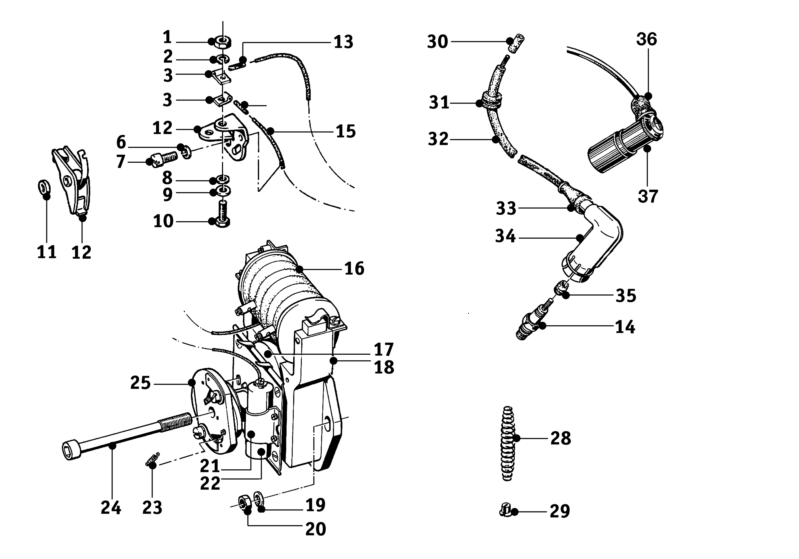

Ignition R51-3 / R68

Pos		SKU	BMW no.	Add. info	Rec. qty	Price
1	Hex nut M3 x 0.5			M3x0,5	1	Not available
2	Wave washer B3 - SSt	9933015.1	07119933015.1	B3	1	€0,11
3	Solder lug for the contact points cable ►see details	8566123	61138566123	4.6 mm ø	2	€2,30
6	Washer Ø 4 mm for contact points screw	5004000	07075004000	4 mm ø	1	€0,22
7	Cylinder head screw M4 x 6 - SSt	9919360.1	07119919360.1	M4x6	1	€0,24
8	Insulation washer, large (set of 2 pcs)	8004138	12118004138	large	2	€4,36
9	Washer for contact points screw	8004140	12118004140		1	€0,28
10	Hex bolt M3 x 9 - SSt	9913020.1	07119913020.1	M3x6	1	€0,12
11	Insulating washer (discontinued)	8004136	12118004136	6 mm ø	1	€1,27
	C Clip for contact points	8030576	12118030576		1	€0,00
12	Contact points - Noris	9058248	12119058248		1	€19,54
14	Spark plug Bosch W 240 T1 (W4AC) short reach (discontinued)			Short reach	2	Not available
15	cable connection to the capacitor	8030108	12318030108		2	€8,29
16	Clamping screw M4.5 for original ignition coil	8004104.7	12138004104.7		1	€2,30
16b	Ignition coil - high quality, made in Germany ►see details	8004104	12138004104/B		1	€240,12
16c	Ignition coil, after-market - Emerald Island ►see details	8004104/H	12138004104/H		1	€119,49
16d	Clamp for ignition coil	8004104.A	12138004104.A		1	€9,50
17	Rotor - NOS (1 available)			R51/3 - R67/3	1	Not available
18	Used part: dynamo and ignition system - complete				1	Not available
19	Flat washer Ø 6.4 - zinc plated	9931043	07119931043	6.4	2	€0,07
20	Hex nut M6 x 1.0 - zinc plated	9922059	07119922059	M6	2	€0,12
21	Capacitor clamp (Noris)	8030107	12318030107	NORIS	1	€6,17
x	Cylinder head screw M4 x 6 - SSt	9919360.1	07119919360.1		2	€0,24
22	Capacitor with screw connector - 0.22μF (made in Germany)	8030106	12318030106		1	€16,15
	Capacitor and clamp set (Noris)	8030105	12318030105	NORIS	1	€30,37
23	Advance spring 11 mm ►see details	8002171	12128002171	11 mm	2	€4,82
	Advance spring 9 mm ►see details	8002172	12128002172	9 mm	2	€6,10
24	Allen head hex. screw M8 x 80	8004100	12318004100		1	€4,96
25	Ignition advance unit, after-market ►see details	8004113	12128004113		1	€207,50
x	Stop spring, inner - centrifugal governor (old)	8004113.7	12128004113.7	old	1	€15,55
x	Stop spring, outer - centrifugal governor	8004113.3	12128004113.3		1	€8,41
x	Locking plate for adjusting cam - advance unit (no longer available)	8004113.S	12128004113.S		2	€5,87
x	Felt pad with spring for advance unit - Noris	0001927	12310001927		1	€9,62
x	Washer for aluminum rivets for oil felt leaf spring (contact points)	8030110.L	12118030110.L		2	€0,12
x	Alu rivet - round head 2 x 5, for oil felt on leaf spring (contact points)	8030110.M	12118030110.M		1	€0,12
x	Alu rivet - round head 2 x 3, for oil felt leaf spring (contact points)	8030110.N	12118030110.N		2	€0,12
28	Spring ignition timing R68, R69	8004146	12128004146	R68	1	€12,69
29	Fitting for advance cable R68, R69 - temporarily unavailable	8004148	12128004148	R68	1	€8,89
30	End sleeve for ignition cable	8036165	12128036165		2	€0,30
31	Rubber grommet sparkplug wire	8036150	12128036150		2	€1,71
32	Spark plug wire BERU, silicone - copper core cable - 1 meter	8036124	12128036124		2	€8,35
33	Rubber cover for spark plug cap and cable (BERU)	8036160	12128036160		2	€1,56
34	Spark plug cap with BMW logo - Bakelite - 0 KΩ ►see details	8036104	12128036104	R51/2 Bakelite	2	€18,88
	Spark plug cap, Bosch - black - 0 KΩ	8036154	12128036154	R51/2	2	€20,51
	Spark plug cap BERU - 1 KΩ resistor ►see details	8036157	12128036157		2	€10,95
36,37	Spark plug cap - original BMW, with logo - 0 KΩ	5590014	12125590014	R51/3 - R68	2	€30,25
	Spark plug cap - Noris, with logo - 0 KΩ	8036156	12128036156	R51/3 - R68	2	€29,34
	Spark plug cap with BMW logo - Bakelite - 0 KΩ ►see details	8036104	12128036104		2	€18,88
	Spark plug cap BERU - 1 KΩ resistor ►see details	8036157	12128036157		2	€10,95
	C Clip for contact points 3.2	01866	07119932815		1	€1,03
	Speedi Sleeve 25 mm for magneto rotor ►see details	99098		R51/3 - R67/3	1	€41,02
