Saddle R25/2, R25/3

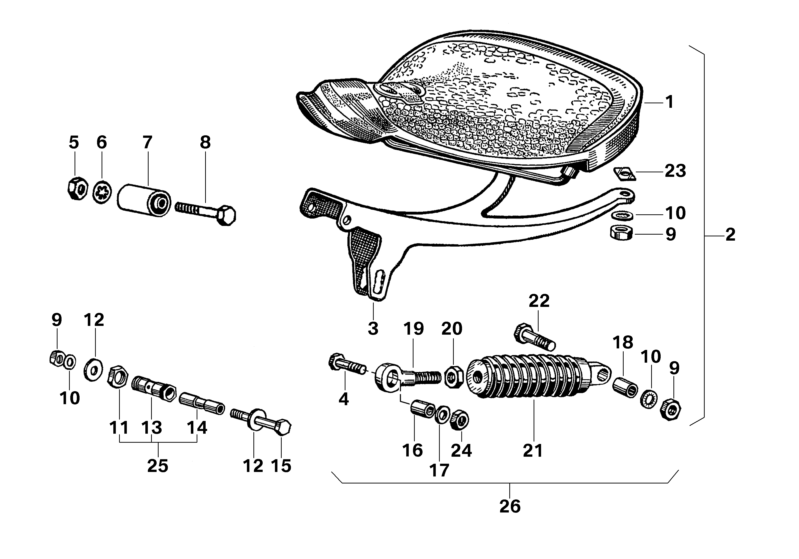

BMW R51-2 to R68 Saddle.png
Pos Description SKU BMW no. Add. info Rec. qty Price Qty
1 Saddle deck Pagusa, without frame Saddle deck Pagusa, without frame7002004 52517002004 without frame 1 €95,77
Saddle deck with frame - Pagusa (not the R50-R69S model) Saddle deck with frame - Pagusa (not the R50-R69S model)7002009 52517002009 with frame 1 €193,36
2 Saddle Pagusa complete - 8 mm - incl. chrome spring, R25/2 Saddle Pagusa complete - 8 mm - incl. chrome spring, R25/27002009.D 52517002009.D R25/2 - in combin. with nr. 9-15 or 25 1 €350,30
Saddle Pagusa complete - 10 mm - incl. chrome spring, R25/3 - R27 Saddle Pagusa complete - 10 mm - incl. chrome spring, R25/3 - R277002009.F 52517002009.F R25/3 - in combination with nr. 5-8 1 €339,59
3 Saddle Y-frame - 8 mm bolt - R25/2 Saddle Y-frame - 8 mm bolt - R25/27002115 52517002115 R25/2 - in comb. with nr. 9-15 or 25 1 €113,14
Saddle Y-frame - 10 mm bolt, R25/3 - R27 Saddle Y-frame - 10 mm bolt, R25/3 - R277002116 52517002116 R25/3 - in comb. with nr. 5-8 1 €113,14
x Z-bracket for saddle frame Z-bracket for saddle frame7002009.A 52517002009.A with frame 1 €10,59
4 Hex bolt M8 x 1 x 30 for tank mounting ►see details Hex bolt M8 x 1 x 30 for tank mounting ►see details9914053 07119914053 1 €1,67
5 Hex nut M10 x 1 - SW17- SSt Hex nut M10 x 1 - SW17- SSt9922121.1 07119922121.1 R25/3 1 €1,09
6 Serrated washer J10.5 - Zinc plated Serrated washer J10.5 - Zinc plated9936226 07119936226 R25/3 1 €0,19
7 Silent block, 10 mm bolt, saddle - frame mounting Silent block, 10 mm bolt, saddle - frame mounting7002141 52517002141 R25/3 1 €16,21
8 Hex bolt M10 x 1 x 68 for saddle bearing - zinc plated Hex bolt M10 x 1 x 68 for saddle bearing - zinc plated9914364 07119914364 R25/3 1 €3,59
9 Hex nut M8 x 1 SW14 - zinc plated Hex nut M8 x 1 SW14 - zinc plated9922094 07119922094 1 €0,61
10 Wave washer B8 Wave washer B89932090 07119932090 1 €0,12
15 Hex bolt M8 x 1 x 68 for tank & saddle mounting - zinc plated Hex bolt M8 x 1 x 68 for tank & saddle mounting - zinc plated9914089 07119914089 R25/2 1 €3,56
16 Spacer bushing for ring screw (saddle spring) - SSt Spacer bushing for ring screw (saddle spring) - SSt7002123.1 52517002123.1 1 €4,27
17 Flat washer Ø 8.4 mm 1 Not available
18 Spacer bushing for saddle spring (at frame) Spacer bushing for saddle spring (at frame)7002124.1 52517002124.1 1 €5,38
19 Ring bolt for saddle spring - polished SSt Ring bolt for saddle spring - polished SSt7002137.4 52517002137.4 1 €19,42
20 Hex nut M10 x 1, flat (T = 4.8 mm) - zinc plated Hex nut M10 x 1, flat (T = 4.8 mm) - zinc plated9921616 07119921616 1 €0,54
21 Seat spring - chrome Seat spring - chrome7002102 52517002102 1 €70,06
22 Hex bolt M8 x 1 x 45 for seat spring / muffler - SSt Hex bolt M8 x 1 x 45 for seat spring / muffler - SSt9914070.1 07119914070.1 1 €4,26
22b Hex bolt M8 x 1 x 45 for seat spring / muffler - polished SSt Hex bolt M8 x 1 x 45 for seat spring / muffler - polished SSt9914070.4 07119914070.4 1 €6,84
24 Hex nut M8 x 1 SW13 Hex nut M8 x 1 SW139922093SP 07119922093 1 €0,34
25 Saddle bearing bolt 8 mm, complete - SSt Saddle bearing bolt 8 mm, complete - SSt7002125.7 52517002125.7 R25/2 1 €30,49
25b Repair kit for seat bearing R25/3 - R27, R51/3 - R68 ►see details Repair kit for seat bearing R25/3 - R27, R51/3 - R68 ►see details7002125.S 52517002125.S R25/2 1 €54,81
