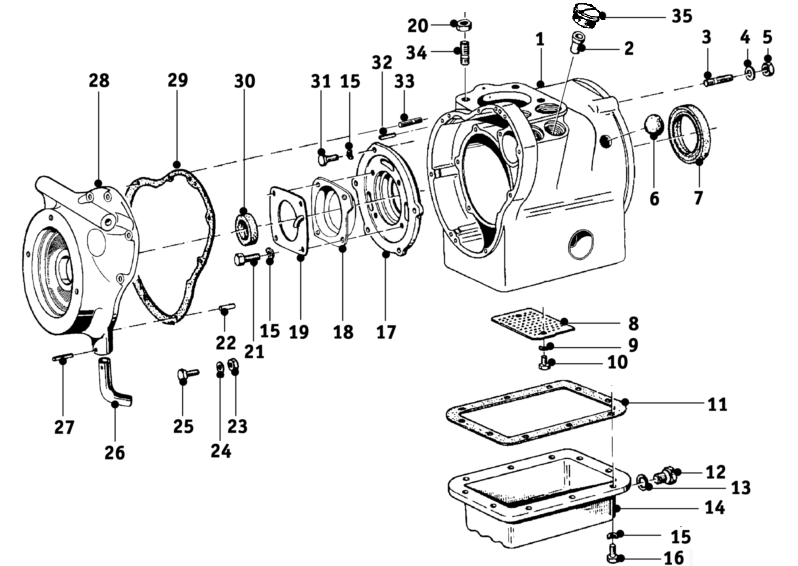

Crankcase R24 – R25/3

Pos		SKU	BMW no.	Add. info	Rec. qty	Price
2	Bearing bushing for oil pump	0001112	11110001112	R25/2, R25/3	1	€10,77
3	Stud bolt M8 x 30 - SSt	9906148.1	07129906148.1	M8x30	4	€6,72
	Flat washer Ø 8.4 mm - SSt	9931067.1	07119931067.1	Ø 8.4 mm - SSt	1	€0,18
4	Flat washer Ø 8.4 mm			Ø 8.4 mm	4	Not available
5	Hex nut M8 x 1.25	9922081	07119922081	M8	4	€0,15
6	Plug for flywheel inspection hole - ivory	0001106	11110001106	ivory	1	€1,88
	Plug for flywheel inspection hole - black	1744327	11111744327	black	1	€1,94
7	Crankshaft rear oil seal 45 x 62 x 10	0001100	11110001100		1	€15,08
8	Oil filter plate	0007102	11110007102	R25, R25/2	1	€11,86
	Oil filter plate	0001116	11110001116	R25/3	1	€13,61
9	Wave washer B6 - black oxide	9932099	07119932099	B6	2	€0,30
10	Hex bolt M6 x 8 for oil sieve - zinc plated	9916651	07119916651	M6x8	2	€0,24
11	Oil pan gasket, paper 1.5 mm, R24 – R27	0007100.A	11130007100.A		1	€7,93
11	Oil pan gasket, rubber & cork, R24 - R27	0007100.B	11130007100.B		1	€4,78
11	Oil pan gasket, cork, R24 – R27				1	Not available
12	Oil plug M14 x 1.5 - SSt	0007104.1	11130007104.1	M14x1.5	1	€12,89
12b	Oil plug M14 x 1.5 - polished SSt	0007104.4	11130007104.4	M14x1.5	1	€14,04
	Oil plug M14 x 1.5 with magnet - zinc plated	0007163	11130007163	M14x1.5	1	€10,04
13	Aluminum seal ring C14 x 18 x 1.5 mm	9963242	07119963242	14x18x1.5 mm	1	€0,51
14	Oil pan, zinc plated steel (discontinued)			Steel	1	Not available
15	Wave washer B6 - zinc plated			B6	19	Not available
16	Hex bolt M6 x 16 - SSt	9913463.1	07119913463.1	M6x15	10	€0,34
16a	Hex bolt M6 x 16 - SSt	9913463.1	07119913463.1	M6x15	1	€0,34
16b	Hex bolt M6 x 16 - polished SSt	9913463.4	07119913463.4	M6x15	1	€2,78
17	Bearing cover R25 ►see details (available for pre-order)	0002102	11110002102	R25	1	€131,10
	Bearing cover, steel - after market	0002104	11110002104	R25/2, R25/3	1	€139,76
	Bush bearing R25	0002108	11110002108	R25	1	€59,47
19	Used part: flange R24, R25	0002126	11110002126	R24, R25	1	€37,15
	Used part: flange for crankshaft bearing cover	0002124.U	11110002124.U	R25/2, R25/3	1	€15,90
20	Hex nut M10, SW14 - untreated steel ►see details			Wrench 14	4	Not available
21	Hex bolt M6 x 16 - SSt	9913463.1	07119913463.1	M6x16	4	€0,34
23	Hex nut M6 x 1.0 - zinc plated	9922059	07119922059	M6x1.0	4	€0,12
24	Flat washer Ø 6.4 - zinc plated	9931043	07119931043	Ø 6.4	8	€0,07
25	Hex Bolt M6 x 25 - SSt	9913480.1	07119913480.1	M6 x 25	4	€0,29
26	Crankcase vent tube - SSt	0001114.1	11150001114.1		1	€18,39
26b	Crankcase vent tube - polished SSt	0001114.4	11150001114.4		1	€19,54
27	Lock pin for vent tube	9943020	07119943020		1	€0,79
29	Housing cover gasket R24 - R27	0002114	11110002114		1	€3,99
30	Crankshaft front oil seal 20 x 37 x 10 +Mark+Swiss	0002110	11110002110	20-37-10	1	€8,41
31	Hex bolt M6 x 18 black oxide	9913471	07119913471	M6x18	5	€0,31
33	Stud bolt M6 x 25 - zinc plated steel	9908255	07119908255	M6x25	2	€2,84
34	Cylinder stud bolt M10 x 22 - SSt	9903416.1	07119903416.1	M10x22	4	€7,56
34b	Cylinder stud bolt M10 x 25 (+3 mm) - SSt	9903416.3	07119903416.3	M10x22	1	€5,24
35	Oil pump cover - polished SSt	0052109.4	11410052109.4	R24 - R25/2	1	€13,73
35b	Oil pump cover - SSt	0052109.1	11410052109.1	R24 - R25/2	1	€11,92
	Oil pump cover - SSt	0052110.1	11410052110.1	R25/3	1	€13,07
x	Complete set of gaskets & seals for R24 - R25 engine ►see details	0008415	11000008415		1	€63,89
