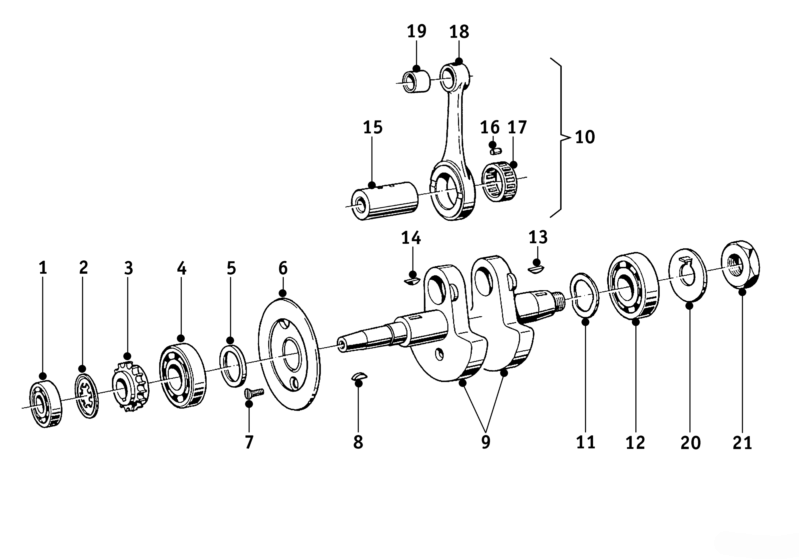

Crankshaft R24 – R25/3

Pos Description SKU BMW no. Add. info Rec. qty Price Qty
1 Bearing SKF 6204 C3 ►see details Bearing SKF 6204 C3 ►see details9981219 07119981219 6204 C3 1 €10,16
2 Crankshaft front spring washer Crankshaft front spring washer0016120 11210016120 1 €7,20
x Circlip A20 x 1,2 crankshaft Circlip A20 x 1,2 crankshaft9934131 07119934131 A20x1.2 1 €0,54
3 Chainwheel on crankshaft Chainwheel on crankshaft0016118 11210016118 1 €90,75
x Ring between sprocket and bearing R25 - R25/3 (38 x 30 x 6.5 mm) Ring between sprocket and bearing R25 - R25/3 (38 x 30 x 6.5 mm)0016116 11210016116 R25 - R25/3 1 €6,17
4 Ball bearing FAG 6206 front + rear crankshaft and ring gear ►see details Ball bearing FAG 6206 front + rear crankshaft and ring gear ►see details9981237 07119981237 6206 1 €5,26
5 Spacer ring for oil slinger with chamfer Spacer ring for oil slinger with chamfer0016114 11210016114 1 €4,96
6 Oil slinger, Ø = 18.4 mm fit with crankpin ►see details Oil slinger, Ø = 18.4 mm fit with crankpin ►see details0016112 11210016112 R25 - R25/3 1 €16,82
Oil slinger, Ø = 17.7 mm fit with crankpin Oil slinger, Ø = 17.7 mm fit with crankpin0016112B 11210016112B R25 1 €38,78
7 Countersunk screw M6 x 10 for oil slinger ►see details Countersunk screw M6 x 10 for oil slinger ►see details9900106 07119900106 AM6X10 1 €2,36
8 Woodruff key front crankshaft taper 4x5 Woodruff key front crankshaft taper 4x59951454 07119951454 1 €1,50
9,10 No product image available Crankshaft complete - new production0016002.3 11210016002.3 1 €381,15
10 Set of connecting rod, big-end, roller cage and rollers Set of connecting rod, big-end, roller cage and rollers0017002 11240017002 1 €359,79
11 Spring washer crankshaft - flywheel Spring washer crankshaft - flywheel0016124 11210016124 2 €2,72
12 Ball bearing FAG 6206 front + rear crankshaft and ring gear ►see details Ball bearing FAG 6206 front + rear crankshaft and ring gear ►see details9981237 07119981237 6206 1 €5,26
13 Woodruff key 5 x 6.5 mm Woodruff key 5 x 6.5 mm9951480 07119951480 R24 - R25/2 1 €1,63
Woodruff key 5 x 4.4 mm - flywheel Woodruff key 5 x 4.4 mm - flywheel0016132 11210016132 R25/3 1 €2,78
14 Woodruff key crankshaft / camshaft 3x5 Woodruff key crankshaft / camshaft 3x59951440 07119951440 3x5 1 €1,52
15 Crankpin 32 x 54 mm - cylindrical Crankpin 32 x 54 mm - cylindrical0016108 11210016108 32 x 54 mm tapered 1 €84,52
16 Roller for conrod Ø 7.020 x 10 mm ±1μ (available from Salis Services) Roller for conrod Ø 7.020 x 10 mm ±1μ (available from Salis Services)0016143.02 11240016143.02 Ø 7.00 x 10 mm 12 €0,00
16b Roller for conrod Ø 7.01 x 10 mm ±1μ (available from Salis Services) Roller for conrod Ø 7.01 x 10 mm ±1μ (available from Salis Services)0016143.01 11240016143.01 Ø 7.00 x 10 mm 1 €0,00
16c Roller for conrod Ø 7.030 x 10 mm ±2μ (available from Salis Services) Roller for conrod Ø 7.030 x 10 mm ±2μ (available from Salis Services)0016143.03 11240016143.03 Ø 7.00 x 10 mm 1 €0,00
16d Roller for conrod Ø 7.039 x 10 mm ±1μ (available from Salis Services) Roller for conrod Ø 7.039 x 10 mm ±1μ (available from Salis Services)0016143.04 11240016143.04 Ø 7.00 x 10 mm 1 €0,00
16e Roller for conrod Ø 7.054 x 10 mm ±2μ (available from Salis Services) Roller for conrod Ø 7.054 x 10 mm ±2μ (available from Salis Services)0016143.06 11240016143.06 Ø 7.00 x 10 mm 1 €0,00
16f Roller for conrod Ø 7.048 x 10 mm ±2μ (available from Salis Services) Roller for conrod Ø 7.048 x 10 mm ±2μ (available from Salis Services)0016143.05 11240016143.05 Ø 7.00 x 10 mm 1 €0,00
16g Roller for conrod Ø 7.000 x 10 mm ±2μ (available from Salis Services) Roller for conrod Ø 7.000 x 10 mm ±2μ (available from Salis Services)0016143.C 11240016143.C Ø 7.00 x 10 mm 1 €0,00
16h Roller for conrod Ø 7.049 x 10 mm ±2μ (available from Salis Services) Roller for conrod Ø 7.049 x 10 mm ±2μ (available from Salis Services)0016143.D 11240016143.D Ø 7.00 x 10 mm 1 €0,00
16i Roller for conrod Ø 6.992 x 10 mm ±1μ (available from Salis Services) Roller for conrod Ø 6.992 x 10 mm ±1μ (available from Salis Services)0016143.A 11240016143.A Ø 7.00 x 10 mm 1 €0,00
16j Roller for conrod Ø 7.003 x 10 mm ±2μ (available from Salis Services) Roller for conrod Ø 7.003 x 10 mm ±2μ (available from Salis Services)0016143.E 11240016143.E Ø 7.00 x 10 mm 1 €0,00
16k Roller for conrod Ø 7.025 x 10 mm ±2μ (available from Salis Services) Roller for conrod Ø 7.025 x 10 mm ±2μ (available from Salis Services)0016143.025 11240016143.025 Ø 7.00 x 10 mm 1 €0,00
16l Roller for conrod Ø 6.995 x 10 mm ±1μ (available from Salis Services) Roller for conrod Ø 6.995 x 10 mm ±1μ (available from Salis Services)0016143.B 11240016143.B Ø 7.00 x 10 mm 1 €0,00
17 Roller cage for crankpin 12 x 7 mm rollers - big end bearing Roller cage for crankpin 12 x 7 mm rollers - big end bearing0016128 11210016128 1 €51,43
19 Wrist pin bushing - 18 mm (needs reaming after press fit) Wrist pin bushing - 18 mm (needs reaming after press fit)0017102 11240017102 18 mm 1 €11,25
20 Lock plate for hex. nut flywheel Lock plate for hex. nut flywheel0070118 11220070118 R25 - R25/3 1 €6,78
21 Hex nut for flywheel - zinc plated Hex nut for flywheel - zinc plated0016122HN 11210016122 1 €7,87
