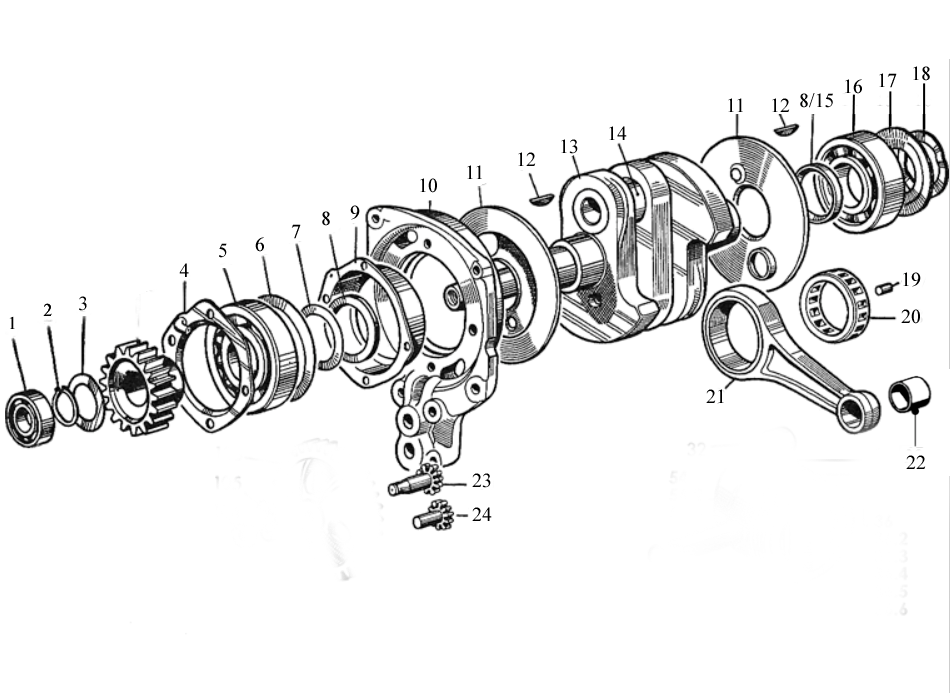

Crankshaft R51/2 – R68

Pos Description SKU BMW no. Add. info Rec. qty Price Qty
1 Ball bearing FAG 6203, crankshaft & camshaft ►see details Ball bearing FAG 6203, crankshaft & camshaft ►see details9981213 07119981213 6203 - 17x40x12 mm 1 €3,93
2 Lock ring A25 x 1.2 mm Lock ring A25 x 1.2 mm9934171 07119934171 A25x1.2 mm 1 €0,58
3 Shim for crankshaft gear Shim for crankshaft gear0016201.A 11210016201.A 0.5 - 0.75 - 1.0 mm 1 €3,81
4 Front main bearing flange cover with oil tube ►see details Front main bearing flange cover with oil tube ►see details0002176 11110002176.2 R51/3 - R67/3 1 €38,59
Front main bearing flange cover with oil tube ►see details Front main bearing flange cover with oil tube ►see details0002174 11110002174 R68 1 €37,75
5 Ball bearing FAG 6207 M for crankshaft - brass cage ►see details!! Ball bearing FAG 6207 M for crankshaft - brass cage ►see details!!9981245 07119981245 6207M 2 €94,56
6 Spacer ring for front bearing bushing Spacer ring for front bearing bushing0016244 11210016244 R51/3 - R67/3 1 €12,95
7 Spacer ring inner Spacer ring inner0016240.5 11210016240.5 R51/3 - R67/3 1 €3,27
8 Spacer ring crankshaft with chamfer 4.2 mm Spacer ring crankshaft with chamfer 4.2 mm0016212 11210016212 R51/3 - R67/3 2 €7,87
9 Bearing bushing, front crankshaft Bearing bushing, front crankshaft0002156 11110002156 R51/3 - R67/3 1 €180,65
10 No product image available Bearing cover, front side crankshaft (not available for the moment)0002029 11110002029 R51/3 - R67/3 1 €244,03
No product image available Bearing cover, steel, front side crankshaft - discontinued0002033 11110002033 R68 1 €0,00
11 Oil slinger R51/2, R51/3, R50 Oil slinger R51/2, R51/3, R500016216 11210016216 R51/2 , R51/3 2 €20,03
Oil slinger R67 - R60 ►see details Oil slinger R67 - R60 ►see details0016217 11210016217 R67/2, R67/3 2 €19,00
Oil slinger R68, R69 Oil slinger R68, R690016218 11210016218 R68 2 €27,41
x Countersunk screw M6 x 10 for oil slinger ►see details Countersunk screw M6 x 10 for oil slinger ►see details9900106 07119900106 2/4 €2,36
12 Woodruff key 4 x 6.5 mm Woodruff key 4 x 6.5 mm9951461 07119951461 4 x 6.5 mm 1 €1,52
Crankshaft overhaul R68, R69 - option 1 ►see details R68 1 Not available
14 Crankpin 32 x 50 mm - 1 side tapered (available for pre-order) Crankpin 32 x 50 mm - 1 side tapered (available for pre-order)0016234 11210016234 R51/3 2 €79,75
Crankpin 36 x 50 mm - 1 side tapered Crankpin 36 x 50 mm - 1 side tapered0016233 11210016233 R67 2 €79,75
No product image available Crankpin 36 x 53 mm - 1 side tapered (available for pre-order)0016231 11210016231 R68 2 €83,55
Spacer washer with chamfer ~ 2 mm Spacer washer with chamfer ~ 2 mm0016266 11210016266 R68 1 €5,59
8 Spacer ring crankshaft with chamfer 4.2 mm Spacer ring crankshaft with chamfer 4.2 mm0016212 11210016212 R51/3 - R67/3 2 €7,87
15 Spacer washer with chamfer ~ 2 mm Spacer washer with chamfer ~ 2 mm0016266 11210016266 R68 1 €5,59
16 Ball bearing FAG 6207 M for crankshaft - brass cage ►see details!! Ball bearing FAG 6207 M for crankshaft - brass cage ►see details!!9981245 07119981245 R51/2 - R67/3 (R68) 1 €94,56
Crankshaft main bearing rear 20207 C3 +Mark+Swiss Crankshaft main bearing rear 20207 C3 +Mark+Swiss9983301 07119983301 R68 1 €166,90
17 Crankshaft main bearing rear 20207 C3 +Mark+Swiss Crankshaft main bearing rear 20207 C3 +Mark+Swiss9983301 07119983301 R51/3 - R68 1 €166,90
18 Wave washer crankshaft - flywheel Wave washer crankshaft - flywheel0016130 11210016130 R51/3 - R68 1 €4,30
19 Roller for conrod Ø 7.020 x 10 mm ±1μ (available from Salis Services) Roller for conrod Ø 7.020 x 10 mm ±1μ (available from Salis Services)0016143.02 11240016143.02 Ø 7.0x mm 24/28 €0,00
19b Roller for conrod Ø 7.01 x 10 mm ±1μ (available from Salis Services) Roller for conrod Ø 7.01 x 10 mm ±1μ (available from Salis Services)0016143.01 11240016143.01 Ø 7.0x mm 1 €0,00
19c Roller for conrod Ø 7.030 x 10 mm ±2μ (available from Salis Services) Roller for conrod Ø 7.030 x 10 mm ±2μ (available from Salis Services)0016143.03 11240016143.03 Ø 7.0x mm 1 €0,00
19d Roller for conrod Ø 7.039 x 10 mm ±1μ (available from Salis Services) Roller for conrod Ø 7.039 x 10 mm ±1μ (available from Salis Services)0016143.04 11240016143.04 Ø 7.0x mm 1 €0,00
19e Roller for conrod Ø 7.054 x 10 mm ±2μ (available from Salis Services) Roller for conrod Ø 7.054 x 10 mm ±2μ (available from Salis Services)0016143.06 11240016143.06 Ø 7.0x mm 1 €0,00
19f Roller for conrod Ø 7.048 x 10 mm ±2μ (available from Salis Services) Roller for conrod Ø 7.048 x 10 mm ±2μ (available from Salis Services)0016143.05 11240016143.05 Ø 7.0x mm 1 €0,00
19g Roller for conrod Ø 7.000 x 10 mm ±2μ (available from Salis Services) Roller for conrod Ø 7.000 x 10 mm ±2μ (available from Salis Services)0016143.C 11240016143.C Ø 7.0x mm 1 €0,00
19h Roller for conrod Ø 7.049 x 10 mm ±2μ (available from Salis Services) Roller for conrod Ø 7.049 x 10 mm ±2μ (available from Salis Services)0016143.D 11240016143.D Ø 7.0x mm 1 €0,00
19i Roller for conrod Ø 6.992 x 10 mm ±1μ (available from Salis Services) Roller for conrod Ø 6.992 x 10 mm ±1μ (available from Salis Services)0016143.A 11240016143.A Ø 7.0x mm 1 €0,00
19j Roller for conrod Ø 7.003 x 10 mm ±2μ (available from Salis Services) Roller for conrod Ø 7.003 x 10 mm ±2μ (available from Salis Services)0016143.E 11240016143.E Ø 7.0x mm 1 €0,00
19k Roller for conrod Ø 7.025 x 10 mm ±2μ (available from Salis Services) Roller for conrod Ø 7.025 x 10 mm ±2μ (available from Salis Services)0016143.025 11240016143.025 Ø 7.0x mm 1 €0,00
19l Roller for conrod Ø 6.995 x 10 mm ±1μ (available from Salis Services) Roller for conrod Ø 6.995 x 10 mm ±1μ (available from Salis Services)0016143.B 11240016143.B Ø 7.0x mm 1 €0,00
20 Roller cage for crankpin 14 x 7 mm rollers - big end bearing R51/2 2 Not available
Roller cage for crankpin 12 x 7 mm rollers - big end bearing Roller cage for crankpin 12 x 7 mm rollers - big end bearing0016128 11210016128 R51/3 2 €51,43
21 Set of connecting rod, tapered crankpin, roller cage & rollers (available for pre-order) Set of connecting rod, tapered crankpin, roller cage & rollers (available for pre-order)0017025.S 11240017025.S R51/2 2 €359,79
Set of connecting rod, tapered crankpin 32 x 50, roller cage & rollers Set of connecting rod, tapered crankpin 32 x 50, roller cage & rollers0017027 11240017027 R51/3 2 €359,79
Set of connecting rod, tapered crankpin 36 x 50, roller cage & rollers (FAG-Dürkopp) - not available for the time being Set of connecting rod, tapered crankpin 36 x 50, roller cage & rollers (FAG-Dürkopp) - not available for the time being0017029 11240017029 R67 - R67/3 2 €359,79
Set of connecting rod, cylindrical crankpin (Ø 36 x 53), roller cage & rollers Set of connecting rod, cylindrical crankpin (Ø 36 x 53), roller cage & rollers0017032C 11240017032C R68 2 €359,79
22 Wrist pin bushing - 18 mm (needs reaming after press fit) Wrist pin bushing - 18 mm (needs reaming after press fit)0017102 11240017102 R51/2 - R67/3 2 €11,25
Wrist pin bushing - 20 mm (needs reaming after press fit) Wrist pin bushing - 20 mm (needs reaming after press fit)0017150 11240017150 R68 2 €10,77
23 Oil pump gear with LH screw thread ►see details Oil pump gear with LH screw thread ►see details0052164 11410052164 1 €65,28
24 Oil pump meshing gear Oil pump meshing gear0052171 11410052171 1 €24,81
Spacer ring crankshaft front with chamfer Spacer ring crankshaft front with chamfer0016268/3.6 11210016268/3.6 R68 1 €4,36
