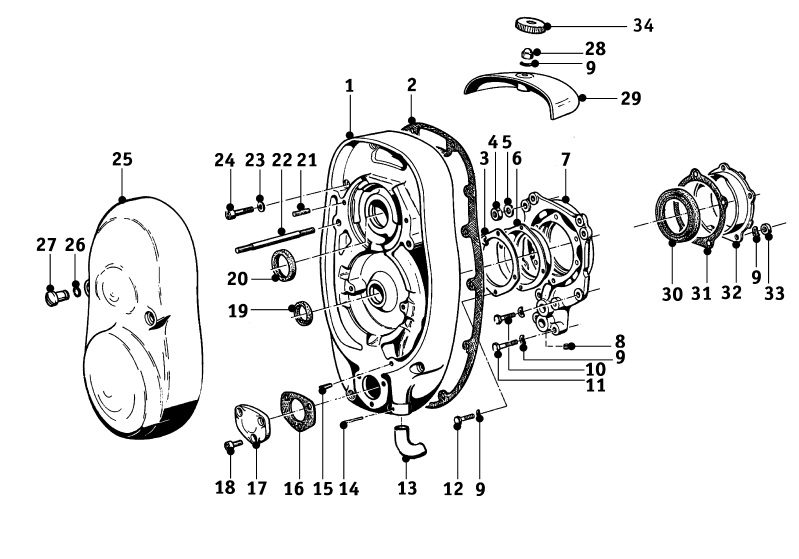

Housing cover R51/3 – R68

Pos Description SKU BMW no. Add. info Rec. qty Price Qty
Complete set of gaskets & seals for R51/3 - R67/3 engine ►see details Complete set of gaskets & seals for R51/3 - R67/3 engine ►see details0008414.A 11000008414.A R51/3 - R67/3 1 €124,93
Complete set of gaskets & seals for R68, R69, R69S engine ►see details Complete set of gaskets & seals for R68, R69, R69S engine ►see details0008413 11000008413 R68 1 €115,49
1 No product image available Gear case cover R51/3 - R60 (discontinued)0002027.U 11140002027.U R51/3 - R67/3 1 €0,00
Gear case cover R68, R69 (discontinued) Gear case cover R68, R69 (discontinued)0002031.U 11140002031.U R68 1 €0,00
2 Housing cover gasket (T = 0.50 mm) R51/3 - R67/3 1 Not available
3 Front main bearing flange cover with oil tube ►see details Front main bearing flange cover with oil tube ►see details0002176 11110002176.2 R51/3 - R67/3 1 €38,59
Front main bearing flange cover with oil tube ►see details Front main bearing flange cover with oil tube ►see details0002174 11110002174 R68 1 €37,75
4 No product image available Hex nut M8 x 1.25 - zinc plated9904032 07119904032 R68, M8 4 €0,15
5 No product image available Spring washer B6na1 07119932070 B8 8 €0,00
6 Bearing bushing, front crankshaft Bearing bushing, front crankshaft0002156 11110002156 R51/3 - R67/3 1 €180,65
7 No product image available Bearing cover, front side crankshaft (not available for the moment)0002029 11110002029 R51/3 - R67/3 1 €244,03
No product image available Bearing cover, steel, front side crankshaft - discontinued0002033 11110002033 R68 1 €0,00
8 Oil channel screw plug Oil channel screw plug0001110 11110001110 1 €0,61
9 Wave washer B6 - black oxide Wave washer B6 - black oxide9932099 07119932099 B6 - zinc plated 15 €0,30
Wave washer B6 - zinc plated B6 - stainless steel 15 Not available
10 Hex bolt M6 x 22 - SSt Hex bolt M6 x 22 - SSt9913479 07119913479 M6x22 4/6 €0,22
11 Hex bolt M6 x 28 black oxide Hex bolt M6 x 28 black oxide9913499 07119913499 M6x28 4 €0,46
12 Hex bolt M6 x 16 - SSt Hex bolt M6 x 16 - SSt9913463.1 07119913463.1 M6x16 4 €0,34
12b Hex bolt M6 x 16 - polished SSt Hex bolt M6 x 16 - polished SSt9913463.4 07119913463.4 M6x16 1 €2,78
13 Crankcase vent tube, straight cut, SSt Crankcase vent tube, straight cut, SSt0002166.1 11150002166.1 R68 1 €15,06
13b Crankcase vent tube, straight cut, polished SSt Crankcase vent tube, straight cut, polished SSt0002166.4 11150002166.4 R68 1 €17,36
Crankcase vent tube, bevel cut, SSt Crankcase vent tube, bevel cut, SSt0002176.1 11150002176.1 R51/3 - R67/3 1 €15,71
14 Lock pin for vent tube 2x24 Lock pin for vent tube 2x249943024 07119943024 1 €0,86
15 Clamping bush Clamping bush9941375 07119941375 1 €1,09
19 Crankshaft front oil seal 17 x 28 x 7 mm Crankshaft front oil seal 17 x 28 x 7 mm0002196 11140002196 17x28x7 mm 1 €8,05
20 Camshaft oil seal 25 x 35 x 7 +Mark+Swiss Camshaft oil seal 25 x 35 x 7 +Mark+Swiss1256562 11141256562 R51/3 - R67/3 1 €4,66
Camshaft oil seal 28 x 40 x 7 (dph Germany) Camshaft oil seal 28 x 40 x 7 (dph Germany)0002199 11140002199 R68 1 €7,18
21 Stud bolt M6 x 16 for magneto/ignition coil - SSt Stud bolt M6 x 16 for magneto/ignition coil - SSt9903190.1 07119903190.1 M6x16 <>R68 2 €4,30
Stud bolt M6 x 18 for ignition R68, R69 & gen. cover R5 - R51/2 - SSt Stud bolt M6 x 18 for ignition R68, R69 & gen. cover R5 - R51/2 - SSt9903196.1 07119903196.1 M6x18 - R68 2 €3,99
Hex nut M6 x 1.0 - zinc plated Hex nut M6 x 1.0 - zinc plated9922059 07119922059 M6 2 €0,12
Wave washer B6 - zinc plated B6 2 Not available
22 Stud for generator front cover M6 / M8 - SSt Stud for generator front cover M6 / M8 - SSt0001177.1 11110001177.1 M6/M8 2 €11,50
22b Stud for generator front cover M6 / M6 - SSt Stud for generator front cover M6 / M6 - SSt0001177.2 11110001177.2 M6/M8 1 €12,95
23 Flat washer Ø 6.4 mm for M6 bolt - SSt (smaller outer Ø) Flat washer Ø 6.4 mm for M6 bolt - SSt (smaller outer Ø)9931696.1 07119931696.1 6,4 mm inner Ø 12 €0,18
24 Allen head hex bolt M6 x 40 for engine housing cover - zinc plated Allen head hex bolt M6 x 40 for engine housing cover - zinc plated9919937 07119919937 R51/3 - R68, M6x40 12 €0,46
25 Engine cover R51/3 - R67/3 (discontinued) Engine cover R51/3 - R67/3 (discontinued)0002178 11140002178 Without vibration damper 1 €0,00
No product image available Engine cover for 12V generator with 4 brushes (discontinued)0002179 11140002179 For 12V generator with 4 brushes 1 €0,00
26 Circlip for lock screw toolbox lid 2 Not available
26b Retaining ring for generator cover bolt & toolbox lock screw - SSt Retaining ring for generator cover bolt & toolbox lock screw - SSt4080160.2 16114080160.2 1 €1,69
27 Slotted bolt for generator cover - SSt Slotted bolt for generator cover - SSt0001194 11140001194 2 €12,95
28 Cap nut M6 for upper housing cover & front fender - polished SSt Cap nut M6 for upper housing cover & front fender - polished SSt9924324.4 07119924324.4 M6 1 €3,72
28b Cap nut M6 for upper housing cover & front fender - SSt Cap nut M6 for upper housing cover & front fender - SSt9924324.1 07119924324.1 M6 1 €1,08
29 No product image available Used part: cover for engine housing0002152.U 11140002152.U 1 €24,20
30 Crankshaft rear oil seal 52 x 72 x 10 Viton® ►see details Crankshaft rear oil seal 52 x 72 x 10 Viton® ►see details0001122 11110001122 52x72x10 mm 1 €23,96
31 Bearing bushing gasket Bearing bushing gasket0001164 11110001164 1 €2,06
32 Rear main bearing holder, L=32.0 mm ►see details Rear main bearing holder, L=32.0 mm ►see details0001162 11110001162 R51/3 - R67/3 1 €113,20
32 Rear main bearing holder, L=29.5 mm ►see details Rear main bearing holder, L=29.5 mm ►see details0001163 11110001163 R68 1 €113,20
32 Rear main bearing holder, L=32.0 mm, 3-stud mounting ►see details Rear main bearing holder, L=32.0 mm, 3-stud mounting ►see details0001162.9 11110001162.9 R51/3 - R67/3 1 €240,30
33 Hex nut M6 x 1.0 - zinc plated Hex nut M6 x 1.0 - zinc plated9922059 07119922059 M6 5 €0,12
35 Grommet advance cable Grommet advance cable8036188 11148036188 R68 1 €19,42
36 Stud bolt M6 x 25 Stud bolt M6 x 250001184 11110001184 M6 x 25 5 €4,78
37 Grommet advance cable Grommet advance cable8036188 11148036188 R51/2, R68 1 €19,42
