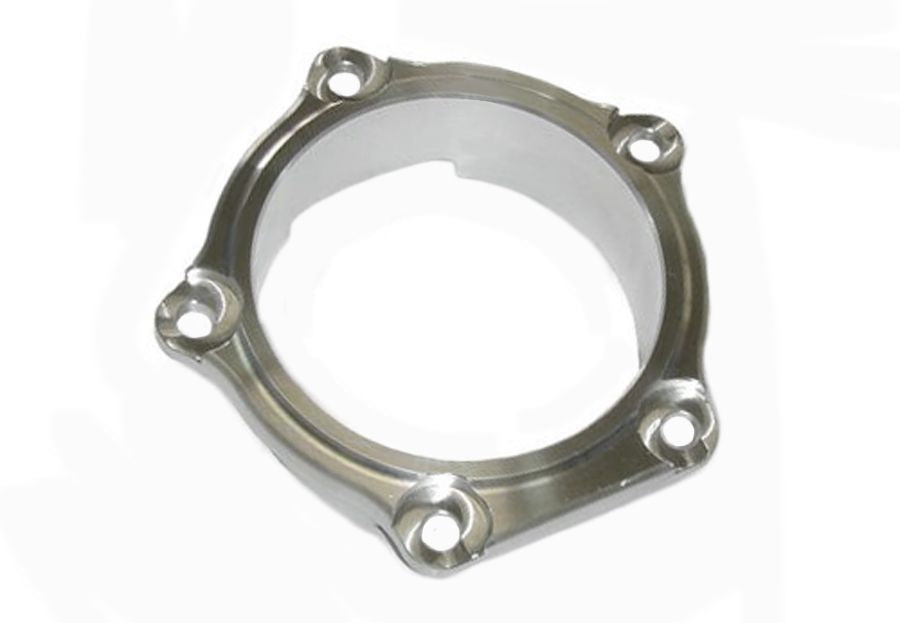

Rear main bearing holder, L=29.5 mm ►see details
BMW part number: 11110001163
The BMW specification for the rear crankshaft bearing and the bearing holder is an interference fit of 0.03 to 0.05 mm
It is recommended to check the inner diameter of the bearing holder: it must be 71,930 - 71,965 mm, measured after installation of the bearing holder in the engine housing.
(Service bulletin 214 dtd 25/09/1964)
If the diameter is smaller (a new bearing holder), it is strongly recommended to ream the bearing holder to this diameter while installed in the engine housing.
If the diameter is larger, it's recommended to install a new bearing holder.
Shown in 2 exploded views
