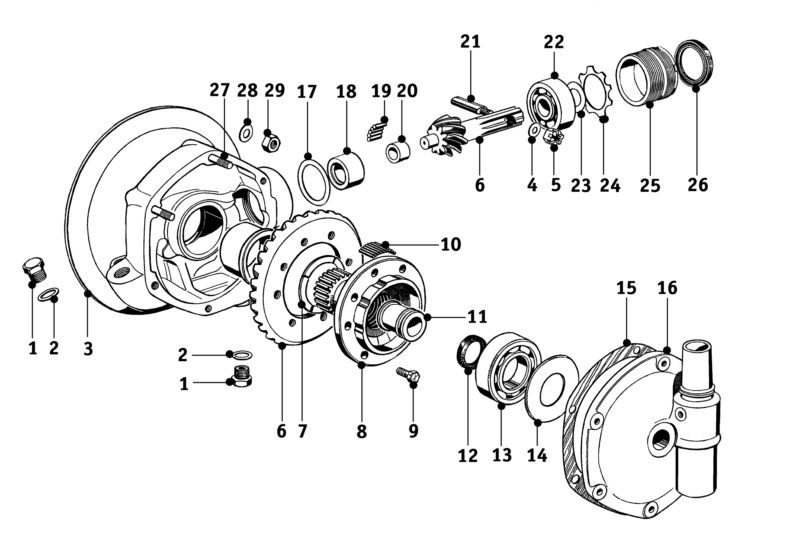

Final drive R51/2 – R68

Pos Description SKU BMW no. Add. info Rec. qty Price Qty
1 Oil plug M14 x 1.5 with magnet - zinc plated Oil plug M14 x 1.5 with magnet - zinc plated0007163 11130007163 M14x1.5 2 €10,04
Oil plug M14 x 1.5 - SSt Oil plug M14 x 1.5 - SSt0007104.1 11130007104.1 M14x1.5 2 €12,89
2 Aluminum seal ring C14 x 18 x 1.5 mm Aluminum seal ring C14 x 18 x 1.5 mm9963242 07119963242 2 €0,51
4 Flat washer Ø 8.4 mm 8.4 Ø 1 Not available
5 Crown nut M8 x 1 SW13 Crown nut M8 x 1 SW139923240 07119923240 M8x1 1 €1,11
Split pin 2 x 20 mm - SSt Split pin 2 x 20 mm - SSt9945115.1 07119945115.1 2x20 1 €0,17
6 Bevel gear set 35:9 for R51/2 - R68 solo Bevel gear set 35:9 for R51/2 - R68 solo0018044 33120018044 R51/2 - R68 1 €538,57
Bevel gear set 35:8 for R67/2 side car (available for pre-order) Bevel gear set 35:8 for R67/2 side car (available for pre-order)3010152 33123010152 R67/2 1 €524,05
Bevel gear set 32:7 for R51/2, R51/3, R67/3, R68 side car Bevel gear set 32:7 for R51/2, R51/3, R67/3, R68 side car3010154 33123010154 R51/2, R51/3, R67/3, R68 1 €524,05
Bevel gear set 32:9 for R67/2, R67/3 solo (available for pre-order) Bevel gear set 32:9 for R67/2, R67/3 solo (available for pre-order)3010156 33123010156 R67/2, R67/3 1 €535,00
7 Set of pressure rings for final drive 1.8 - 2.6 mm (7 pcs) Set of pressure rings for final drive 1.8 - 2.6 mm (7 pcs)3004321 33103004321 1 €126,11
8 Driving dog final drive, original BMW 1 Not available
9 Retaining screw for crown wheel Retaining screw for crown wheel3004150 33113004150 8 €7,80
10 Needle for ring gear R51/2 - R68 (44 pcs) / rocker arm R68 - R69S (8x17 pcs) Needle for ring gear R51/2 - R68 (44 pcs) / rocker arm R68 - R69S (8x17 pcs)0034190 33120034190 44 €0,79
x Bearing bush for ring gear needle bearing R51 - R71, R51/2 - R68 ►see details Bearing bush for ring gear needle bearing R51 - R71, R51/2 - R68 ►see details3004382 33113004382 1 €61,41
11 Spacer sleeve with felt ring, crown wheel Spacer sleeve with felt ring, crown wheel3004357 33123004357 1 €12,95
12 Felt ring for ring gear Felt ring for ring gear3004355 33113004355 1 €4,90
13 Ball bearing FAG 6207 crankshaft rear R26, R27 & ring gear R51/2 - R68 Ball bearing FAG 6207 crankshaft rear R26, R27 & ring gear R51/2 - R689981242 07119981242 1 €12,52
14 Shim for ring gear in final drive Shim for ring gear in final drive3004362.20 33413004362A 1 €10,29
x Shim (secondary) for ring gear in final drive x 35 x 45 mm Shim (secondary) for ring gear in final drive x 35 x 45 mm3004363.10 33413004363A 1 €1,82
15 Gasket final drive Gasket final drive3004360 33113004360 1 €4,11
16 Used part: final drive housing cover 1 Not available
1820 Needle bearing set for pinion +Mark+Swiss Needle bearing set for pinion +Mark+Swiss3038298 33123038298 1 €57,11
19 No product image available Needles for pinion bearing3038296 33103038296 28 €0,31
21 Locking pin for driveshaft, tapered Locking pin for driveshaft, tapered3038288 33113038288 1 €12,89
22 Angular contact ball bearing FAG 3304-BD-TVH for pinion - Polyamide cage Angular contact ball bearing FAG 3304-BD-TVH for pinion - Polyamide cage9982468.F 07119982468.F 3304 1 €47,98
22 Angular contact ball bearing 3304 for pinion, split inner ring ►see details 3304 1 Not available
23 Shim for pinion Shim for pinion3038290.1 33113038290.1 1 €4,48
24 Pressure ring for pinion Pressure ring for pinion3038286 33113038286 1 €10,89
25 Threaded ring final drive R51 - R71, R51/2 - SSt (2 x LH thread) Threaded ring final drive R51 - R71, R51/2 - SSt (2 x LH thread)3038280.1 33123038280.1 R51/2 1 €31,28
Gasket ring set (1.5 - 2.0 - 2.5 mm) cork, R51 - R71, R51/2 Gasket ring set (1.5 - 2.0 - 2.5 mm) cork, R51 - R71, R51/23038195.C 33113038195.C R51/2 1 €9,92
Threaded ring final drive - SSt Threaded ring final drive - SSt3038281.1 33123038281.1 R51/3 - R68 1 €32,91
Gasket ring aluminum C55 x 63 x 2.75 mm ►see details Gasket ring aluminum C55 x 63 x 2.75 mm ►see details3038196 33113038196 R51/3 - R68 1 €3,27
26 Seal for pinion / drive shaft 34 x 49.3 x 9.5 mm +Mark+Swiss Seal for pinion / drive shaft 34 x 49.3 x 9.5 mm +Mark+Swiss3038278 33213038278 34x49.3x9.5 mm 1 €9,14
27 Stud M8 x 1 / 1.25 x 20 for final drive cover - SSt Stud M8 x 1 / 1.25 x 20 for final drive cover - SSt3004323.1 33113004323.1 M8x1/1.25x20 6 €7,44
28 Flat washer Ø 8.4 mm 8.4 Ø 6 Not available
29 Hex nut M8 x 1 SW13 M8x1 6 Not available
30 Gasket and seal set for final drive R51/2 - R68 ►see details Gasket and seal set for final drive R51/2 - R68 ►see details0008421 33000008421 1 €53,91
31 Seal for driving dog final drive +Mark+Swiss Seal for driving dog final drive +Mark+Swiss3004370 26113004370 1 €19,54
32 Used part: seal cover final drive (price & availability on request) Used part: seal cover final drive (price & availability on request)3004373.U 26113004373 R51/3 - R68 1 €0,00
x Cylinder head screw M5 x 18 - SSt Cylinder head screw M5 x 18 - SSt9919428.1 07119919428.1 M5x18 7 €0,24
x Grease nipple M6 x 0.75 - Zinc plated Grease nipple M6 x 0.75 - Zinc plated4038133 36314038133 M6x0.75 1 €1,19
Staburag NBU 30 PTM - 50 gram ►see details Staburag NBU 30 PTM - 50 gram ►see details9056992 07559056992 NBU 30 PTM 50 gr. 1 €24,81
