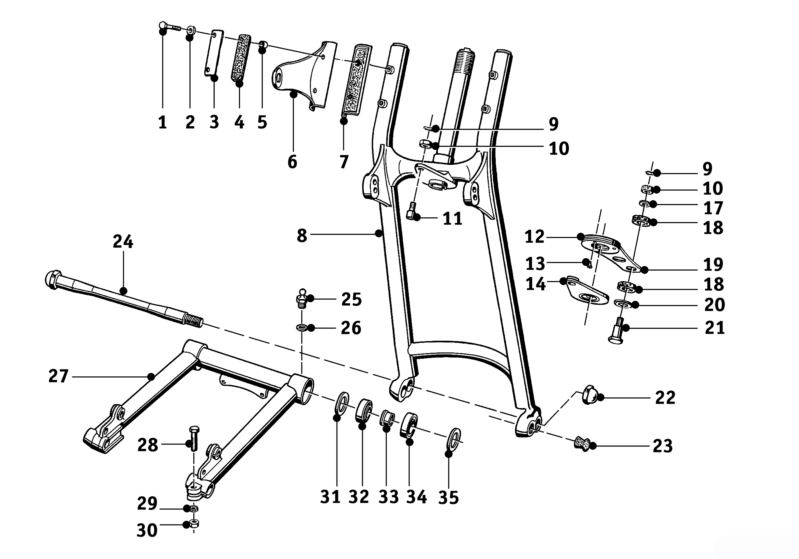

Front fork R26 – R27

Pos		SKU	BMW no.	Add. info	Rec. qty	Price
x	Tapered roller bearing set for steering head (2 pcs)	2000000	31422000000	upper & lower steering head bearing	1	€70,16
1	Hex bolt M6 x 20 - SSt	9913476.1	07119913476.1	M6x20	4	€0,54
2	Shakeproof washer J6.4			J6.4	4	Not available
3	Attaching plate for head light bracket	2000347	31412000347		2	€4,36
4	Rubber spacer plate for head light bracket	2000338	31412000338		2	€9,92
5	Spacer for head light bracket - SSt	2000340.1	31412000340.1		4	€3,35
6	Headlight bracket - left (base coated)	2000306	31412000306		1	€43,14
	Headlight bracket - right (base coated)	2000314	31412000314		1	€43,14
7	Pad for head light bracket	2000336	31412000336		2	€10,77
8	Used part: Swing arm R26, R27 (price & availability on request only)	2000350	31412000350		1	€100,00
9	Split pin 2 x 20 mm - SSt	9945111.1	07119945111.1	2x20	2	€0,17
10	Crown nut M8 x 1.25 H = 8 mm - plain steel	9923412	07119923412	M8	2	€1,09
11	Bolt for steering damper pressure plate - SSt	2000295.1	31412000295.1		1	€10,22
12	Damping washer, set of 2 with rivets ►see details	2000235	31412000235		2	€11,86
13	Rivet for brake lining & steering damper 3 x 10 mm	9949213	07119949213	3x10	3	€0,34
14	Pressure plate for steering damper	2000231	31412000231		1	€27,29
17	Flat washer Ø 8.4 mm - SSt (smaller OD - 14.75 mm)	9931655.1	07119931655.1	8.4	1	€0,15
18	Rubber ring for steering damper anchor bolt - original BMW	2000257	31422000257		2	€3,93
19	Resistance plate steering damper R26, R27	2000220	31412000220		1	€20,45
20	Washer for damper anchor bolt	9931851.1	07119931851.1		1	€5,57
21	Damper anchor bolt - steel	2000255.1	31422000255.1		1	€11,13
22	Cap nut for swing arm bolt - zinc plated	2000328	31412000328		1	€15,06
23	Plug for swing arm R26 - R27	2000332	31412000332		2	€5,38
24	Bolt for swing arm - zinc plated	2000320	31412000320		1	€44,53
25	Lubrication nipple 8 x 1 - zinc plated	9960270	07119960270	8x1	1	€1,57
26	Seal ring A8 x 11.5	9963041	07119963041	A8 x 11.5	1	€0,28
27	Used part: Front wheel swing arm R26, R27 (on request only)	2000358	31412000358		1	€0,00
28	Clamping screw front axle - SSt	2000293.1	31412000293.1		1	€18,33
28b	Clamping screw front axle - polished SSt	2000293.4	31412000293.4		1	€19,60
29	Serrated washer J8.4 - SSt	9936206.1	07119936206.1	8.4	1	€0,21
30	Hex nut M8 x 1 SW13	9922093SP	07119922093	M8x1	1	€0,34
31	Washer for swingarm bearing and gear shaft	1020136	21521020136		2	€5,93
32	Tapered roller bearing 30203 +Mark+Swiss	9985005	07119985005		2	€22,45
33	Thrust sleeve swing arm, front & rear - steel	2000324	31412000324		2	€6,53
34	Seal for taper bearing swing arm (tight press fit)	2000331	31412000331		2	€6,47
35	Shim front swing arm	1231196	31411231196	1 - 1.5 - 2 - 2.5 mm	2	€4,30
