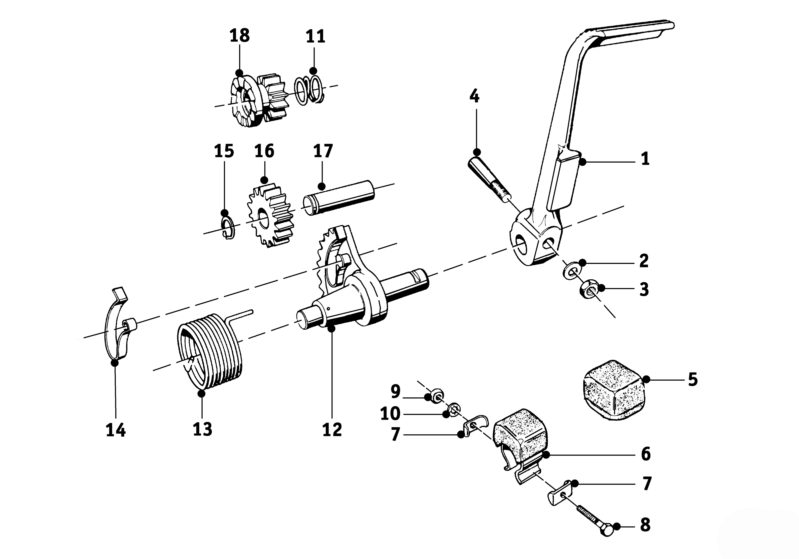

Kickstarter R26 – R27

Pos		SKU	BMW no.	Add. info	Rec. qty	Price
1	Kickstart lever – aluminum, after-market	1056120	23511056120		1	€131,47
	Flat washer Ø 8.4 mm - SSt	9931067.1	07119931067.1	Ø 8.4 mm - SSt	1	€0,18
2	Flat washer Ø 8.4 mm			Ø 8.4 mm	1	Not available
3	Hex nut M8 x 1.25	9922081	07119922081	M8x1.25	1	€0,15
4	Kickstart lever bolt Ø 9 mm M8 - SSt	1056124.1	23511056124.1	9 mm, M8	1	€9,98
5	Rubber bumper for centerstand & kick starter stop	4028135	46524028135	R27	1	€3,81
6	Kickstart lever stop R24 - R25/2, R26 - complete (base coated bracket)	4034154	23514034154	R26	1	€25,89
7	Wedge plate for kickstarter stop - SSt	4034156.1	46514034156.1	R26	2	€3,75
8	Screw M5 x 30 for kickstarter stop - SSt	9912192.1	07119912192.1	R26, M5x30	1	€0,30
9	Hex nut M5 x 0.8 - SSt	9922038SP	07119922038.1	R26, M5	1	€0,13
10	Serrated washer J5.3 - zinc plated	9936110	07119936110	R26, J5.3	1	€0,10
11	Kickstarter spring, 1.1 mm thickness	1056116	23511056116		1	€2,72
12	Used part: kickstarter segment R26, R27 (price & availability on request)	1056102	23511056102		1	€0,00
13	Kickstarter return spring	1056112	23511056112		1	€14,44
15	Circlip A15 x 1	9934080	07119934080	15x1	1	€0,58
16	Idler gear	1056108	23221056108		1	€91,62
17	Axle for kickstarter intermediate gear	1056110	23511056110		1	€16,27
18	Kickstarter gear	1056104	23221056104		1	€103,09
