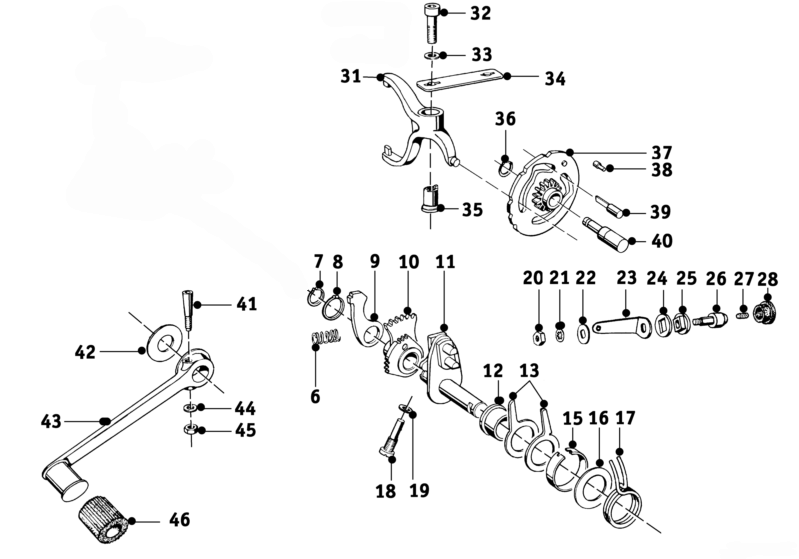

Shifting system R26 – R27

Pos Description SKU BMW no. Add. info Rec. qty Price Qty
6 Spring for shift axle Spring for shift axle1066130 23311066130 1 €2,48
7 Seal foot shift gear lever 15 x 24 x 7 mm Seal foot shift gear lever 15 x 24 x 7 mm1006124 23111006124 1 €7,20
8 Circlip A18 x 1.2 Circlip A18 x 1.29934120 07119934120 18x1.2 1 €0,58
9 No product image available Lever on shift axle1066126 23311066126 1 €18,39
10 Sector gear with stop - NOS Sector gear with stop - NOS1066196 23311066196 1 €31,46
11 No product image available Used part: selector lever, gearbox (price & availability on request)1066193 23311066193 1 €0,00
12 No product image available Spacer bushing1066138 23311066138 1 €0,00
13 Bracket Bracket1066142 23311066142 1 €7,80
15 Steel spring ring Steel spring ring1066146 23311066146 R25 - R25/3 1 €6,95
16 Washer Ø 38 for selector lever Washer Ø 38 for selector lever1066134 23311066134 1 €5,81
17 Return spring - NOS 1 Not available
18 Stop screw for gear shift Stop screw for gear shift1066158 23311066158 2 €7,80
20 Hex nut M6 x 1.0 - zinc plated Hex nut M6 x 1.0 - zinc plated9922059 07119922059 1 €0,12
21 Serrated washer J6.4 - SSt Serrated washer J6.4 - SSt9936135.1 07119936135.1 J6.4 1 €0,13
22 Washer for neutral switch Washer for neutral switch1006170 23311006170 1 €3,27
23 Contact spring, neutral switch Contact spring, neutral switch1006154 23311006154 1 €18,27
24 Insulation washer for neutral switch Insulation washer for neutral switch1006166 23311006166 1 €7,21
25 Insulation bushing for neutral switch Insulation bushing for neutral switch1006162 23311006162 1 €7,87
26 Contact bolt for neutral switch Contact bolt for neutral switch1006158 23311006158 1 €18,51
27 Screw M4 for neutral switch - Allen head Screw M4 for neutral switch - Allen head9905660 07119905660 M4x6 1 €2,36
28 Gearbox neutral switch rubber cover - silver ►see details !! Gearbox neutral switch rubber cover - silver ►see details !!1006174 23111006174 1 €6,26
31 Shifting fork (NOS) Shifting fork (NOS)1066206QRD 23311066206 2 €161,67
32 Allen head screw for shift fork M8 x 45 - zinc plated ►see details Allen head screw for shift fork M8 x 45 - zinc plated ►see details9919736 07119919736 M8x45 2 €1,15
33 Washer for selector fork Washer for selector fork1066186 23311066186 2 €0,59
34 Retaining plate for selector fork Retaining plate for selector fork1066170 23311066170 1 €5,14
35 Eccentric bushing for shift fork Eccentric bushing for shift fork1230086 23311230086 2 €36,00
36 Circlip A12 x 1 Circlip A12 x 19934060 07119934060 12x1 1 €0,57
37 Cam plate NOS, R25/3 - R27 (with neutral switch) Cam plate NOS, R25/3 - R27 (with neutral switch)1066199 23311066199 1 €31,46
40 Pin for shifting cam Pin for shifting cam1006142 23311006142 1 €18,15
41 Locking screw for foot shift Ø 8 mm, M6 - SSt Locking screw for foot shift Ø 8 mm, M6 - SSt1066102.1 23411066102.1 8 mm 1 €11,18
42 Shim for foot shift lever Shim for foot shift lever1230813 23411230813 1.00 mm 1 €5,08
Shim for foot shift lever Shim for foot shift lever1230813 23411230813 0.75 mm 1 €5,08
Shim for foot shift lever Shim for foot shift lever1230813 23411230813 0.50 mm 1 €5,08
43 Used part: foot shift pedal Used part: foot shift pedal1066107/U 23411066107.U 1 €106,18
44 Flat washer Ø 6.4 - zinc plated Flat washer Ø 6.4 - zinc plated9931043 07119931043 Ø 6.4 1 €0,07
45 Hex nut M6 x 1.0 - zinc plated Hex nut M6 x 1.0 - zinc plated9922059 07119922059 M6 1 €0,12
46 Foot shift rubber - black Foot shift rubber - black1066178 23411066178 1 €3,51
