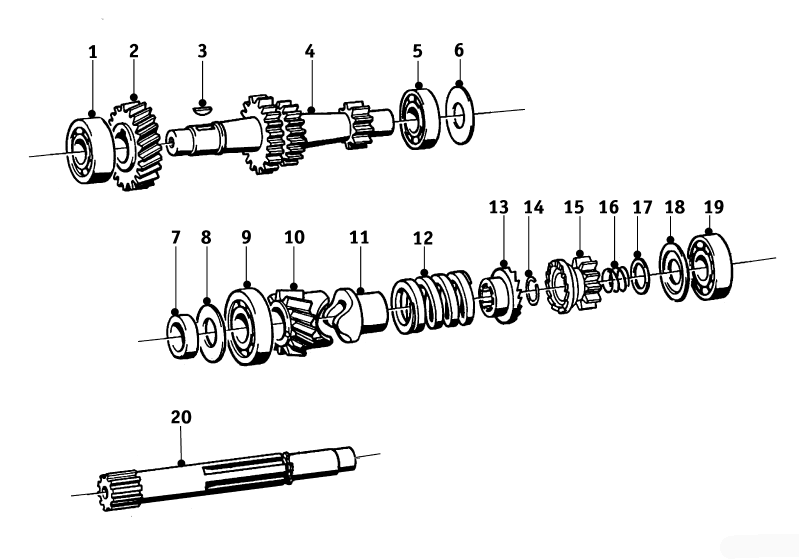

Gearbox, input shaft R50 – R69S

Pos		SKU	BMW no.	Add. info	Rec. qty	Price
1	Angular contact ball bearing SKF 3203 ATN9 - C3	9982409S	07119982409	Std. clearance	1	€32,37
2	Spur gear - counter shaft gear box 21T	1040108	23221040108		1	€235,77
3	Woodruff key 5 x 6.5 mm	9951480	07119951480		1	€1,63
4	Counter shaft - 19T, 15T, 10T (available for pre-order)	1040027	23211040027	R50, R60	1	€277,70
	Counter shaft - 20T, 16T, 12T - new production	1040028	23211040028	R50/2, R50S, R60/2, R69, R69S	1	€278,89
5	Bearing FAG 6203 C3	9981214	07119981214	C3 clearance	1	€4,54
6	Shim gearbox intermediate shaft	1230966	23211230966	R50/2, R50S, R60/2, R69S	1	€6,47
	Set of 4 shims 0.18 - 0.50 mm gearbox intermediate shaft	1230969.S	23211230969.S	R50/2, R50S, R60/2, R69S	1	€26,02
7	Bushing for input shaft gearbox	1020140	21521020140		1	€17,79
8	Washer for swingarm bearing and gear shaft	1020136	21521020136		1	€5,93
9	Bearing SKF 6204 C3 ►see details	9981219	07119981219	C3 clearance	1	€10,16
10	Drive gear 13T- NOS	1020245	23221020245		1	€155,67
11	Thrust piece on input shaft	1080154	21521080154		1	€88,15
12	Thrust spring - NOS	1020152	23211020152		1	€18,51
13	Catch for kickstarter	1020160	23511020160		1	€38,90
14	Snap ring input gear shaft	1020148	23211020148		1	€1,15
15	Kickstarter gear	1056104	23221056104		1	€103,09
16	Kickstarter spring, 1.1 mm thickness	1056116	23511056116		1	€2,72
17	Stop washer	1020164	23211020164		1	€10,35
18	Washer for gearbox drive shaft	1020211	23211020211		1	€10,77
19	Bearing STEYR 6302 C3 input shaft rear			C3 clearance	1	Not available
20	Drive shaft gearbox - new	1020005	23211020005		1	€213,41
21	Shim for input shaft	1020128.020	21521020128.020	Only R50	1	€3,69
21h	Shim for input shaft, set of 7 pcs, 0.18 - 0.90 mm	1020128	21521020128.set	Only R50	1	€25,83
