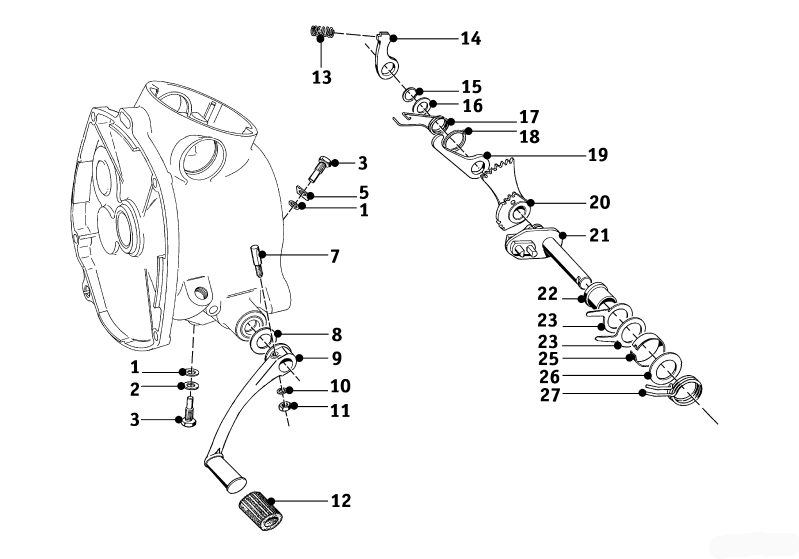

Shifting system (2) R50 – R69S

Pos		SKU	BMW no.	Add. info	Rec. qty	Price
x	Gearbox gasket and seal set R50 - R69S ►see details	0008424	23000008424		1	€60,26
1	Shim for gear box stop screw	1230687	23311230687	0.5 mm	x	€3,63
2	Flat washer Ø 8.4 mm - SSt (smaller OD - 14.75 mm)	9931655.1	07119931655.1	8.4x1.5	x	€0,15
3	Stop screw gearbox, top & bottom	1230935	23311230935		2/1	€5,59
	Stop screw, top, wrench 12 - Sst	1066282RD	23311066282.1	wrench 12	1	€4,60
5	Lock plate for stop screw	1066290	23311066290		1	€3,45
7	Locking screw for foot shift Ø 8 mm, M6 - SSt	1066102.1	23411066102.1		1	€11,18
8	Shim for foot shift lever	1230813	23411230813	1.00 mm	1	€5,08
9	Foot shift lever - aluminum - NOS (slight storage damage)	1066245	23411066245		1	€119,49
10	Flat washer Ø 6.4 - zinc plated	9931043	07119931043	Ø 6.4	1	€0,07
11	Hex nut M6 x 1.0 - zinc plated	9922059	07119922059	M6	1	€0,12
12	Foot shift rubber - black	1066178	23411066178	black	1	€3,51
	Foot shift rubber - dark grey	1232116	23411232116	grey	1	€3,51
13	Spring for shift axle	1066130	23311066130		1	€2,48
14	Catch / ratched pin - NOS	1066256	23311066256		1	€23,78
15	Circlip A14 x 1	9934072	07119934072	14x1	1	€0,58
16	Washer for brake spanner and gear shift axle ►see details	3060107	34213060107		1	€4,30
17	Shank spring (T = 2.3 mm)	1066131	23311066131	T = 2.3 mm	1	€9,34
18	Circlip A18 x 1.2	9934120	07119934120	18x1.2	1	€0,58
19	Catch / ratched pin (original BMW)	1066259	23311066259		1	€29,22
20	Sector gear with stop	1066274	23311066274		1	€30,19
	Sector gear with stop	1066275	23311066275	R50/2, R50S, R60/2, R69S	1	€34,99
21	Selector lever - NOS ►see details!!	1066268	23311066268		1	€83,19
22	Spacer bushing	1066138	23311066138		1	€0,00
23	Bracket	1066142	23311066142		2	€7,80
25	Steel spring ring	1066146	23311066146		1	€6,95
26	Washer Ø 38 for selector lever	1066134	23311066134		1	€5,81
27	Return spring - NOS				1	Not available
