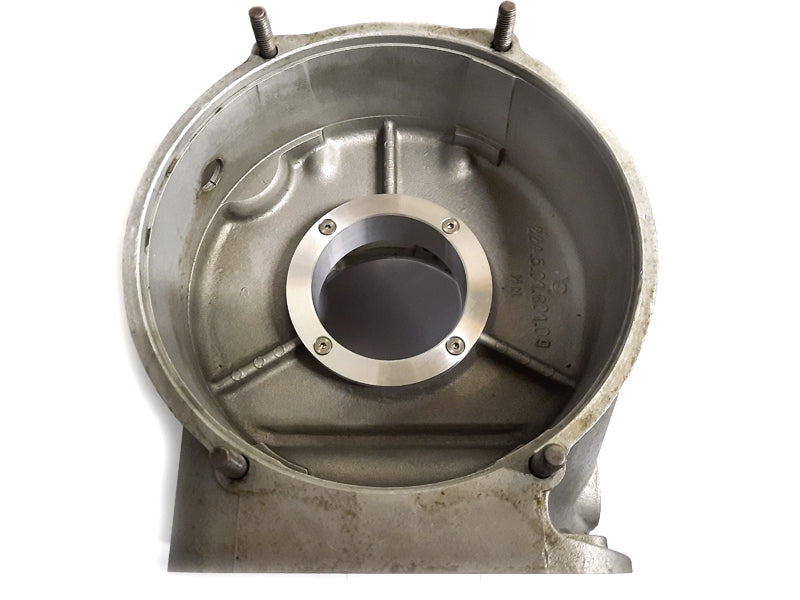

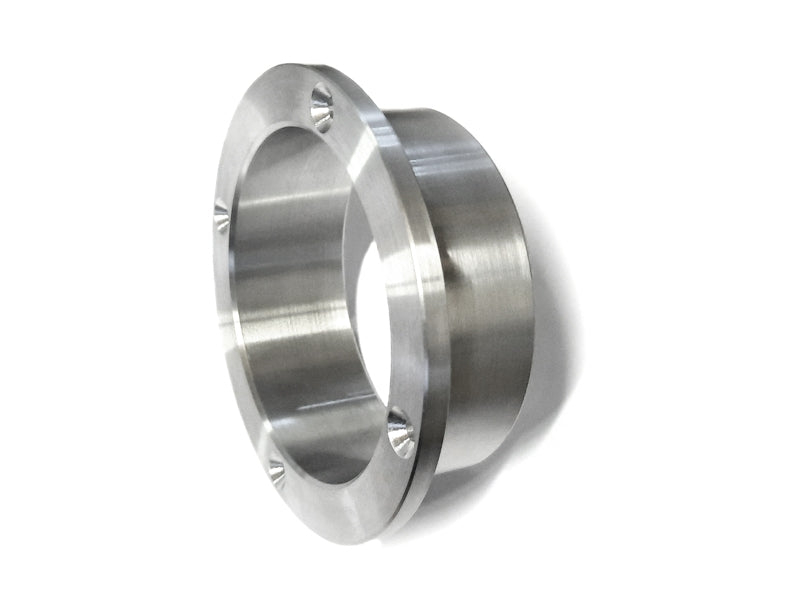

Bearing bushing for crankcase R27 ►see details

When the rear main bearing seat diameter is out of spec., a new bearing bushing can be installed.

The original bearing seat in the crankcase needs to be enlarged to install this bearing bushing.

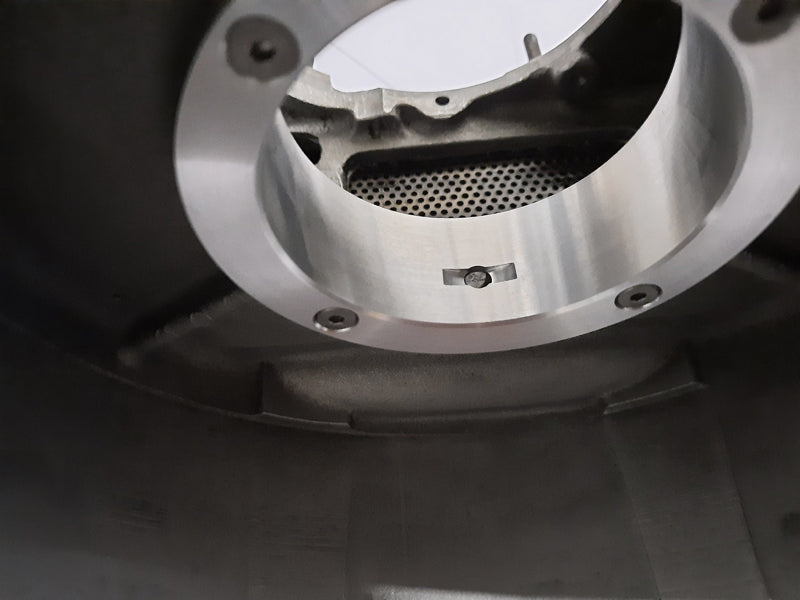

After installation, the new bearing bushing needs to be reamed / bored to size:

ID: 71.950 mm (-0 + 0.015 mm)
