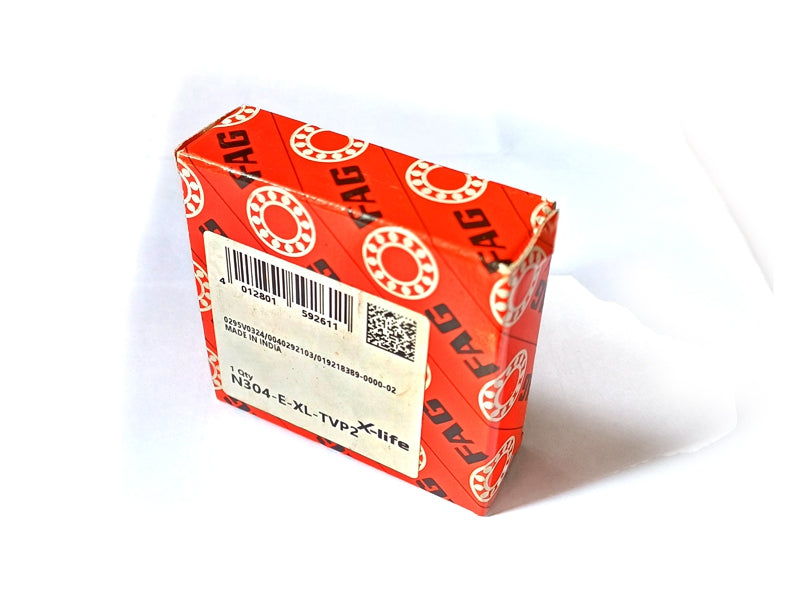

Cylindrical roller bearing FAG N304-E-XL-TVP2 for pinion - 20 x 52 x 15 mm

E = Increased Load Capacity

XL = X-Life

TVP2 = Solid Window Cage Made From Glass Fibre Reinforced Polyamide PA66. Roller Riding

The N304-E-XL-TVP2 FAG is a single-row cylindrical roller bearing with cage. This bearing consists of a solid inner and outer ring with cylindrical rollers in a cage. This cage prevents contact between the cylinder rollers, so this bearing type can support higher speeds than full-complement cylinder roller bearings. Also, single-row cylindrical roller bearings with cages are very rigid and they can take high radial forces. As the inner and outer rings of these bearings can be easily disassembled, they are very easy to install. Applications of single-row cylindrical roller bearings include gearboxes, agricultural machinery, pumps, compressors, and electric motors.

The N304-E-XL-TVP2 FAG is a single-row cylinder bearing with N design. The inner ring has two rigid ribs, while the outer ring has none. As a result, N bearings are only capable of supporting radial forces. This bearing type is commonly used as a floating bearing. Floating bearings allow axial displacement of the shaft relative to the housing in both directions. This is necessary in applications where the shaft material shrinks or expands due to temperature changes (thermal expansion).

The N304-E-XL-TVP2 FAG is an X-life type cylindrical roller bearing. X-life bearings provide better performance than normal cylindrical roller bearings due to a special internal construction. Contact surfaces, steel grade and rolling bodies are of a higher quality. X-life bearings combine a higher load capacity with a longer service life. The bearings generate less heat and allow for higher speeds. Finally, X-life bearings allow for longer maintenance intervals compared to normal cylindrical roller bearings.
