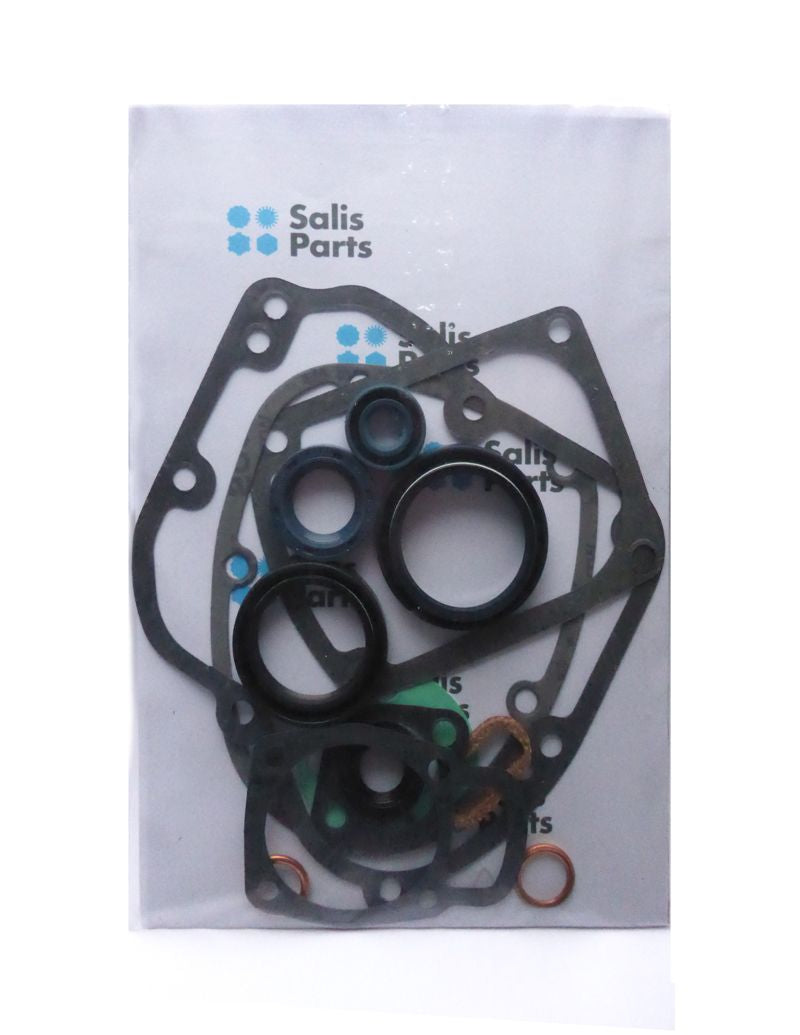

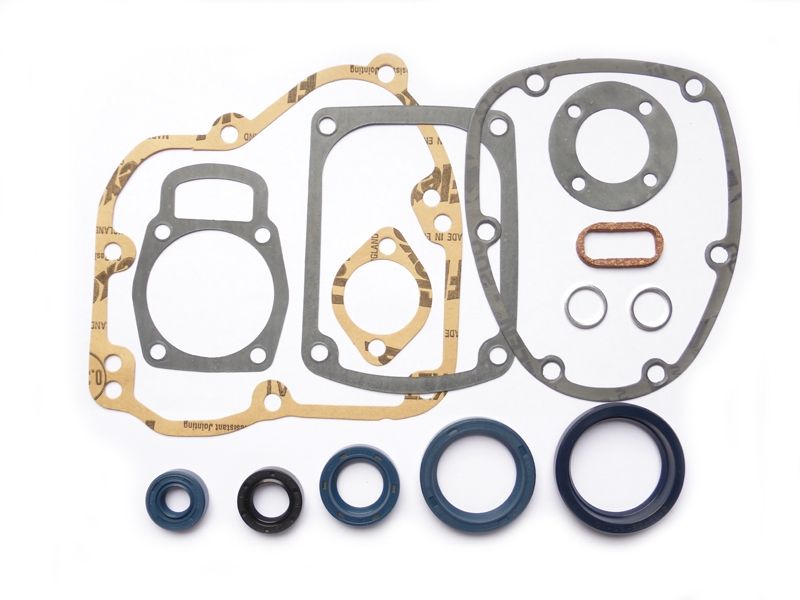

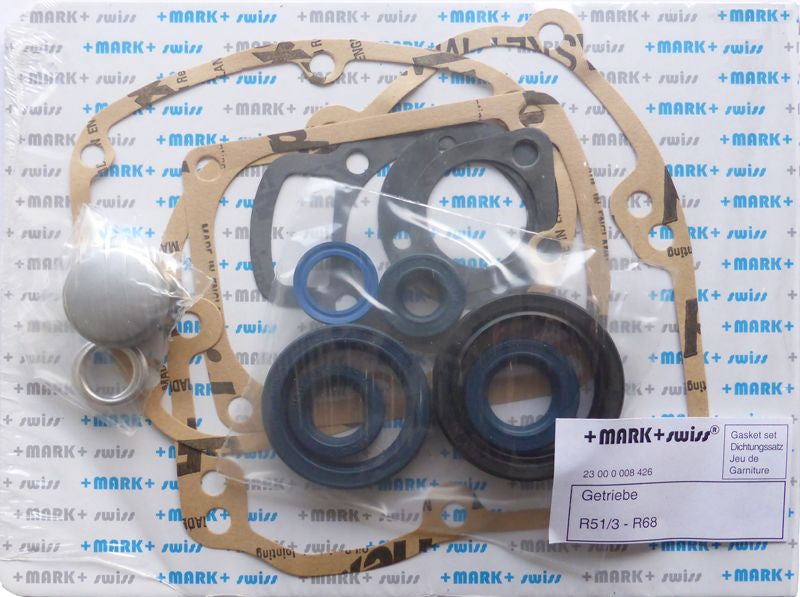

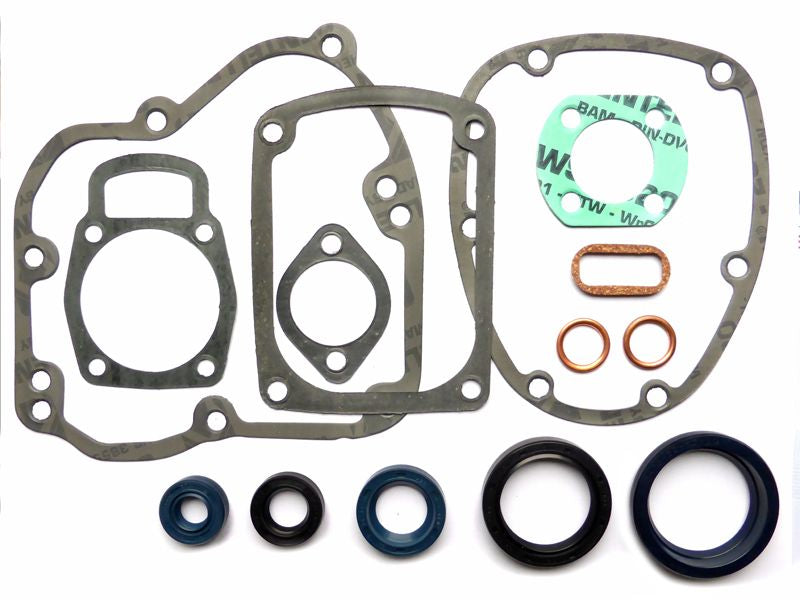

Complete set of gaskets and seals for R51/3 - R68 gearbox
BMW part number: 23000008426
Regular price
€73,27
Sale price
Regular price
Tax included.
Shipping calculated at checkout.
| Part nr. | Description | Qty |
| 23111006208 | Gasket for front cover output shaft | 1 |
| 23111012154 | Gasket - front cover kickstarter shaft | 1 |
| 23111006216 | Gasket for gear box bearing cover (0.5 mm) | 1 |
| 23111006232 | Gasket for gearbox foot-shift cover | 1 |
| 23111006236 | Gasket for gearbox manual gear-shift cover | 1 |
| 11110002188 | Gasket for rear kickstarter bearing | 1 |
| 23111006268 | Cork gasket, gearbox & engine | 1 |
| 21521080156 | Felt for clutch pushrod | 1 |
| 07119963242 | Seal ring C14 x 20 x 2 mm | 2 |
| 23121006261 | Seal input shaft 34 x 46 x 8 | 1 |
| 23121006253 | Seal foot shift lever 16 x 26 x 7 | 1 |
| 23121066225 | Seal hand shift gear lever 12 x 24 x 7 | 1 |
| 23121056253 | Seal kickstarter 20 x 32 x 7 | 1 |
| 23121030272 | Seal gearbox output shaft 39 x 52 x 10 | 1 |
| 15 |
Shown in 2 exploded views
Motorcycle Model
Motorcycle Model
Main Group
Main Group
23 Transmission
