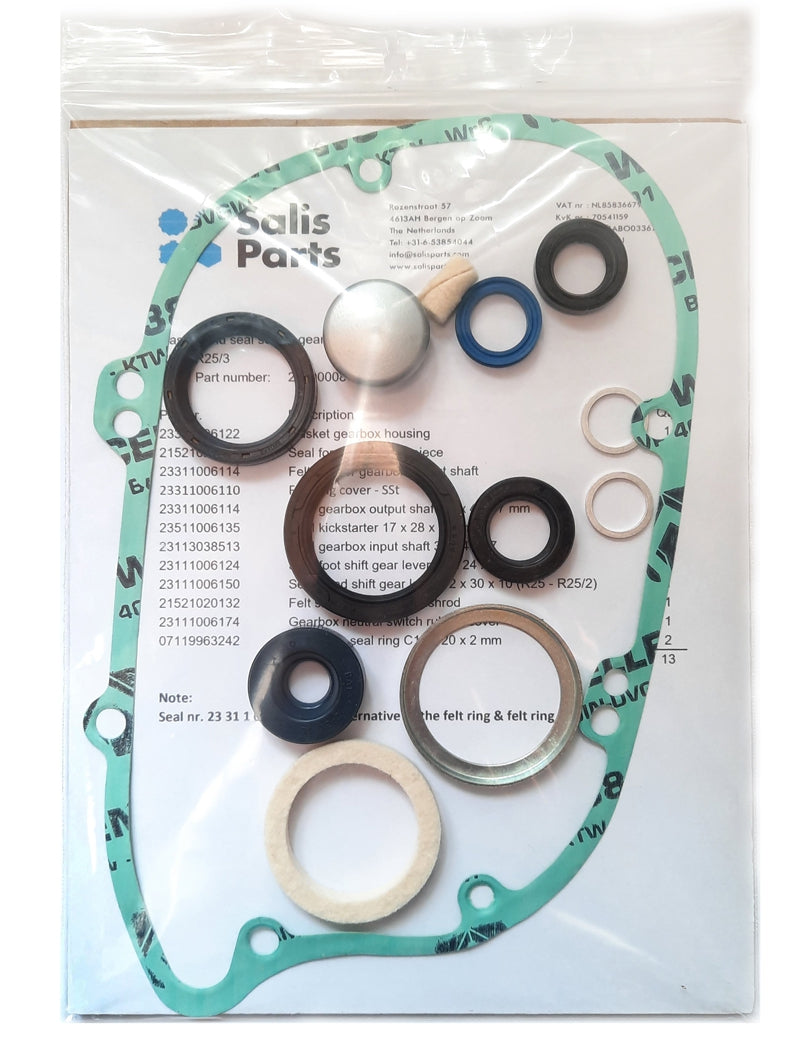

Complete set of gaskets and seals for R25 - R25/3 gearbox ►see details
BMW part number: 23000008422
Regular price
€81,95
Sale price
Regular price
Tax included.
Shipping calculated at checkout.
NOTE:
The felt ring & felt ring cover for the output shaft can be been replaced
with oil seal 23 31 1 006 114 which is part of the set
| Part nr. | Description | Qty |
| 23311006122 | Gasket gearbox housing | 1 |
| 21521020109 | Seal for clutch thrust piece | 1 |
| 23311006114 | Felt ring for gearbox output shaft | 1 |
| 23311006110 | Felt ring cover - SSt | 1 |
| 23311006114 | Seal gearbox output shaft 36 x 48 x 7 mm | 1 |
| 23511006135 | Seal kickstarter 17 x 28 x 7 mm | 1 |
| 23113038513 | Seal gearbox input shaft 30 x 40 x 7 | 1 |
| 23111006124 | Seal foot shift gear lever 15 x 24 x 7 mm | 1 |
| 23111006150 | Seal hand shift gear lever 12 x 30 x 10 (R25 - R25/2) | 1 |
| 21521020132 | Felt sleeve for clutch pushrod | 1 |
| 23111006174 | Gearbox neutral switch rubber cover - silver | 1 |
| 07119963242 | Aluminum seal ring C14 x 20 x 2 mm | 2 |
| 13 |
Shown in this exploded view
Motorcycle Model
Motorcycle Model
Main Group
Main Group
23 Transmission
