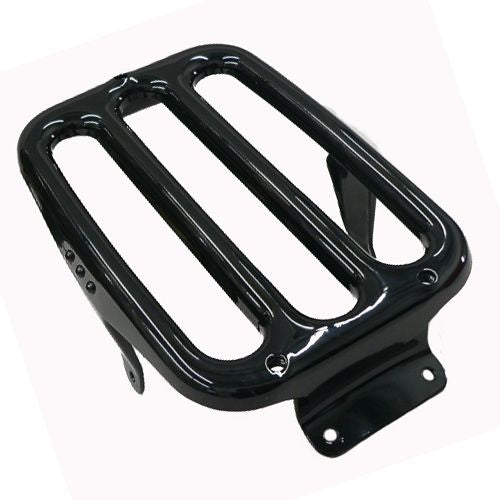

Rear fender luggage rack R50 - R69S ►see details!!

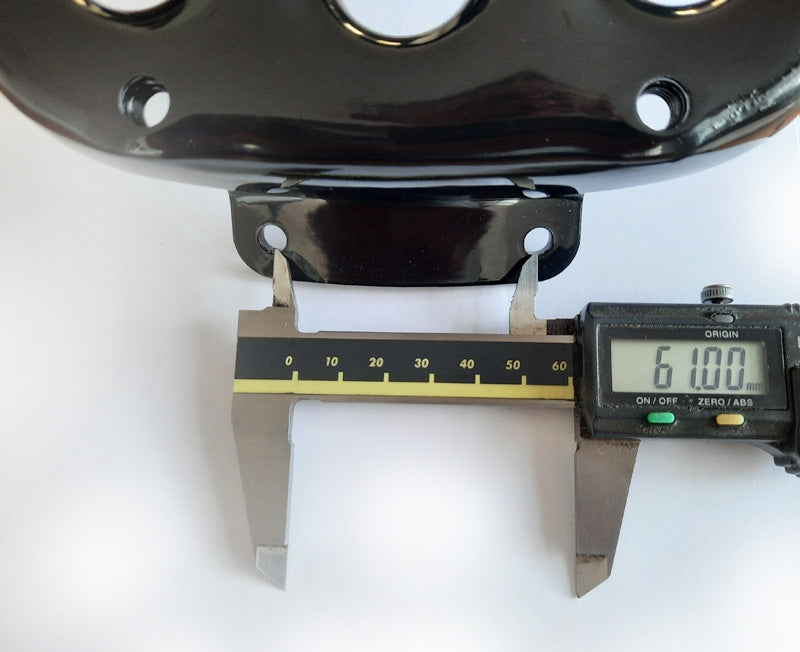

C-T-C mounting hole spacing is ~61mm

It turns out that the mounting holes of these luggage racks do not always match the holes in the fender and side supports of the frame.

If the holes do not correspond, in most cases we hear that "my fender is original and therefore the fault lies in the luggage rack"

However, from my own experience, it appears that there is quite a bit of variation between the position of the holes in the fenders and the side supports.

For example: in the photo below the same luggage rack is fitted to an R50 and an R69.

On the left the R50: the holes overlap for +- 90%. Right my R69: the holes overlap +- 50%. Here the holes in the side supports of the luggage rack will have to be adjusted.

Based on these findings we cannot accept any claims regarding the position of the holes.
